Rear Bumper LF Antenna Replacement

WARNING: This page is about a different car, the 2010 Acura TL and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the rear bumper LF antenna (B) and remove the harness clip (C).

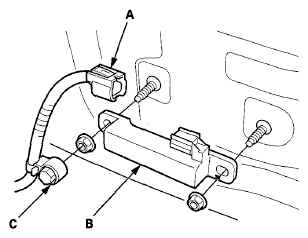

    Fig 1: Identifying Rear Bumper LF Antenna, 2P Connector And Harness Clip
    G06680446Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two nuts and the rear bumper LF antenna.
  4. Install the antenna in the reverse order of removal.
