Hazard Warning Switch Test/Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION )
  2. Push out the hazard warning switch (A) from behind the vent panel

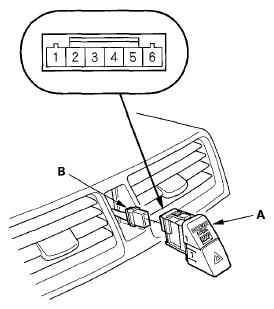

    Fig 1: Identifying Hazard Warning Switch And Vent Panel Connector Terminals
    G05988957Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 5P connector (B) from the hazard warning switch
  4. Check for continuity between the terminals in each switch position according to the table

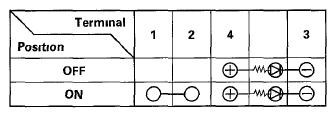

    Fig 2: Terminal Continuity Reference Chart
    G05988958Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the hazard warning switch
  6. Install the switch in the reverse order of removal
