Hood Release Handle Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt, and release the hook (A), then remove the hood release handle (B) from the dashboard

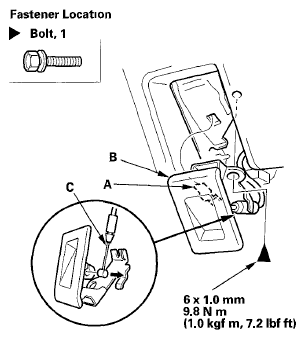

    Fig 1: Hood Release Handle And Hook With Torque Specifications
    G05988467Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the hood opener cable (C) from the hood release handle Take care not to kink the cable
  3. Install the hood release handle in the reverse order of removal, and note these items
    • Make sure the hood opener cable is connected properly
    • Make sure the hood opens properly
