Stabilizer Bar Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the rear of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS )
  2. Remove the rear wheels
  3. Disconnect both stabilizer links from the stabilizer bar (see STABILIZER LINK REMOVAL/INSTALLATION )
  4. Remove the flange bolts (A) and the bushing holders (B), then remove the bushings (C) and the stabilizer bar (D)

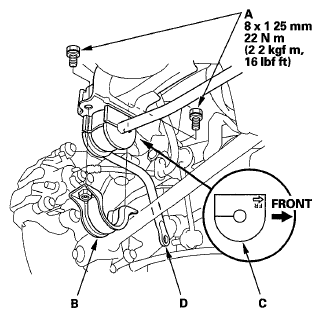

    Fig 1: Flange Bolts, Bushing Holders, Bushings And Stabilizer Bar With Torque Specifications
    G05987818Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the stabilizer bar in the reverse order of removal, and note these items
    • Note the right and left direction of the stabilizer bar
    • Note the direction of installation for the bushing
    • Do not set the bushings on the bent or curved part of the stabilizer bar
    • Refer to the stabilizer link removal/installation to connect the stabilizer bar to the links (see STABILIZER LINK REMOVAL/INSTALLATION )
    • Before installing the wheel, clean the mating surfaces of the brake disc/drum and the inside of the wheel.
