Servo Body

The servo body contains the servo valve, shift valve D, the accumulators for 2nd, 4th, and 5th, and shift solenoid valves for A, B, C, D, and E.

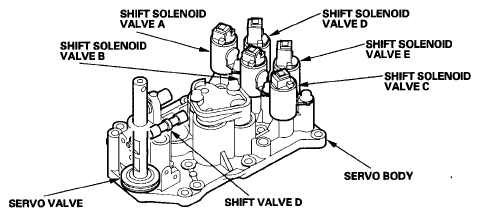

Fig 1: Identifying Servo Body And Shift Solenoid Valves
G06264867Courtesy of AMERICAN HONDA MOTOR CO., INC.
