Home >> Acura >> 2007 >> TSX Standard >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter Overhaul >> Disassembly/Reassembly

Starter Overhaul: Disassembly/Reassembly

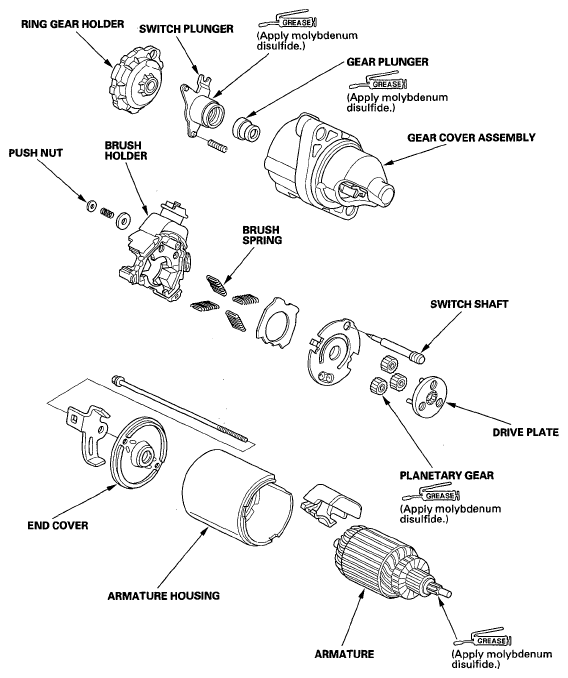

Fig 1: Disassembly/Reassembly Of Starter Overhaul

G05489908

Courtesy of AMERICAN HONDA MOTOR CO., INC.
