Frame Repair Chart

Top View

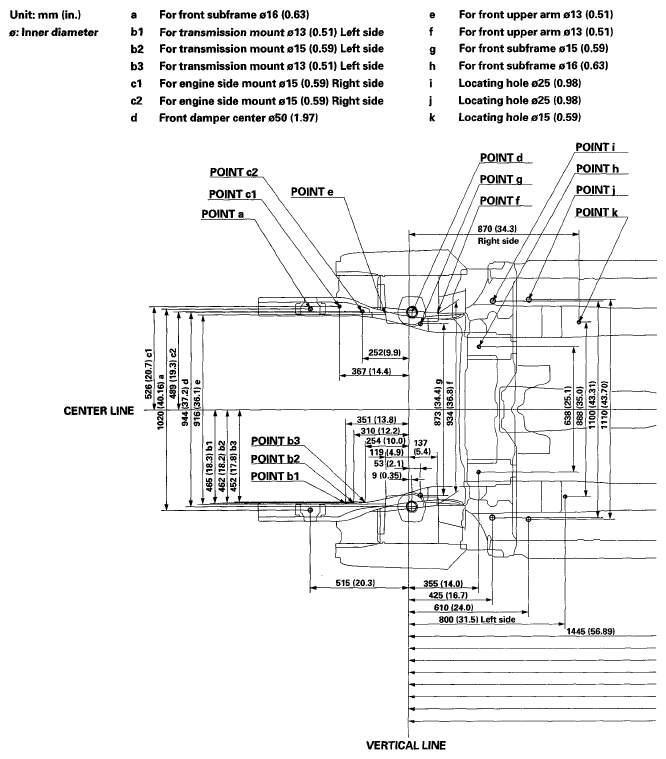

Fig 1: Frame Repair Chart - Top View

G05492577

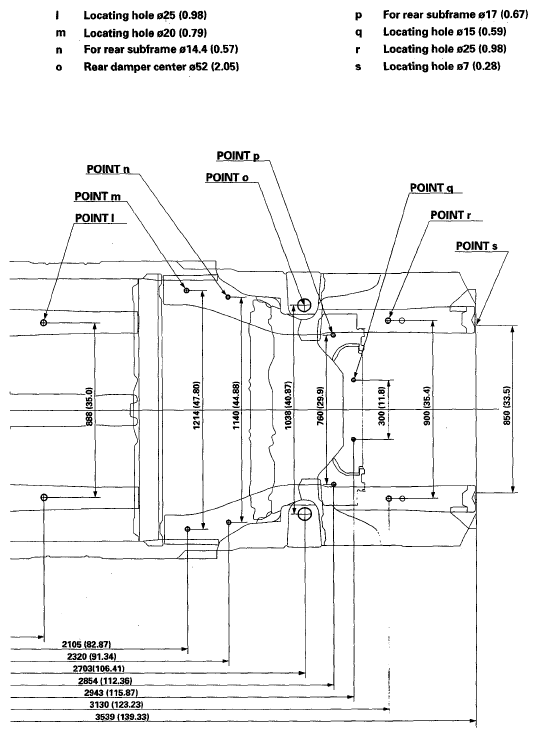

Fig 2: Frame Repair Chart - Top View

G05492578

Side View

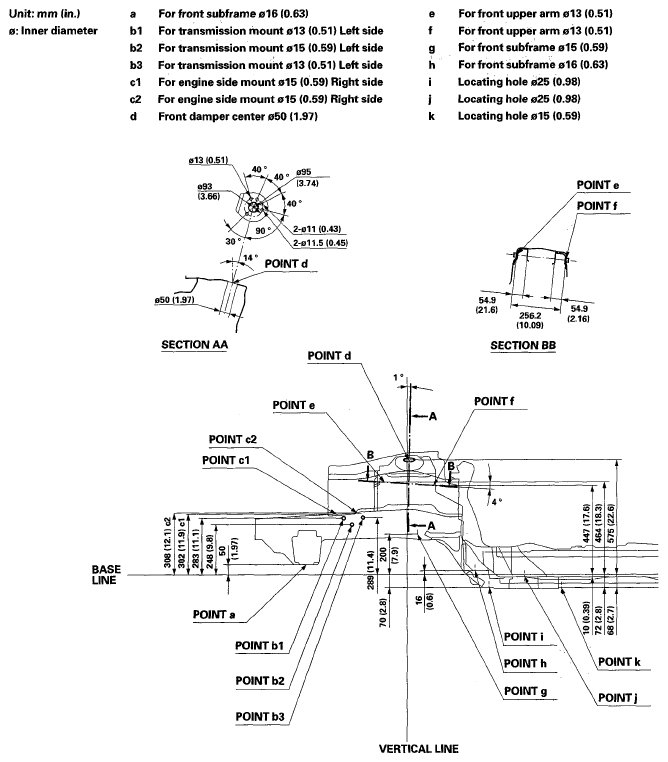

Fig 3: Frame Repair Chart - Side View

G05492579

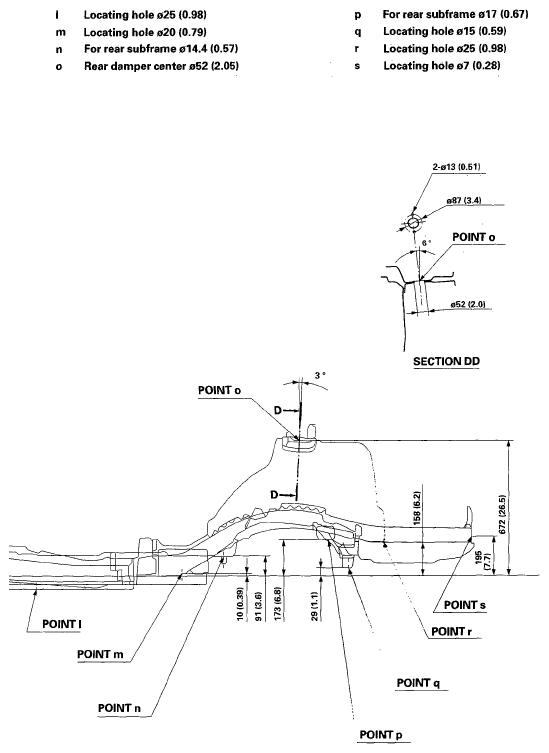

Fig 4: Frame Repair Chart - Side View

G05492580
