DTC P0977: Open in Shift Solenoid Valve B Circuit: Notes

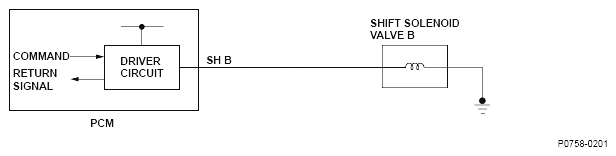

Fig 1: Shift Solenoid Valve B Circuit Diagram

G04836389

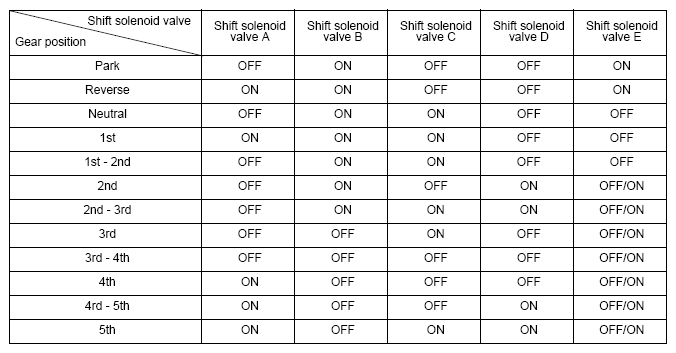

Fig 2: Shift Solenoid Valve Driving Signal Combination Table

G04839114
