TL Type S, Standard
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VSA (Vehicle Stability Assist) System
>>
Circuit Diagram
Circuit Diagram

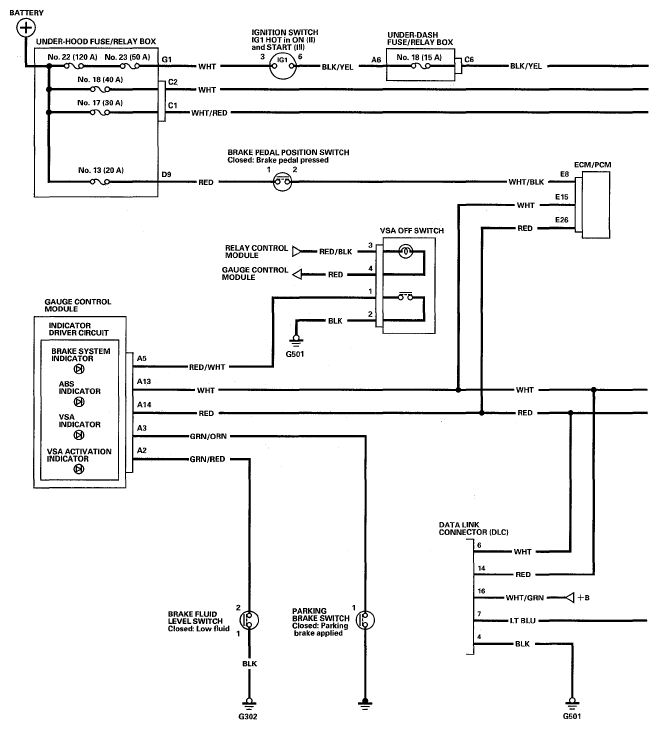

Fig 1: VSA System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

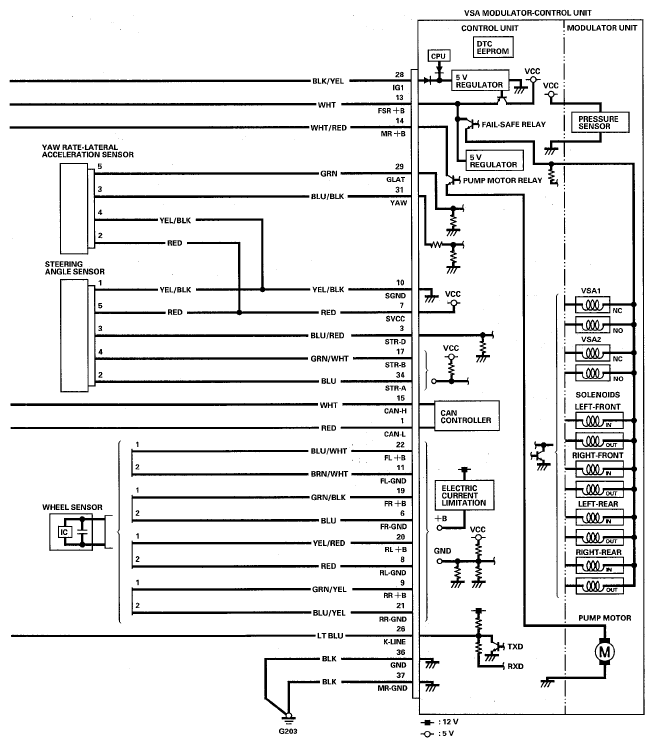

Fig 2: VSA Modulator-Control Unit Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

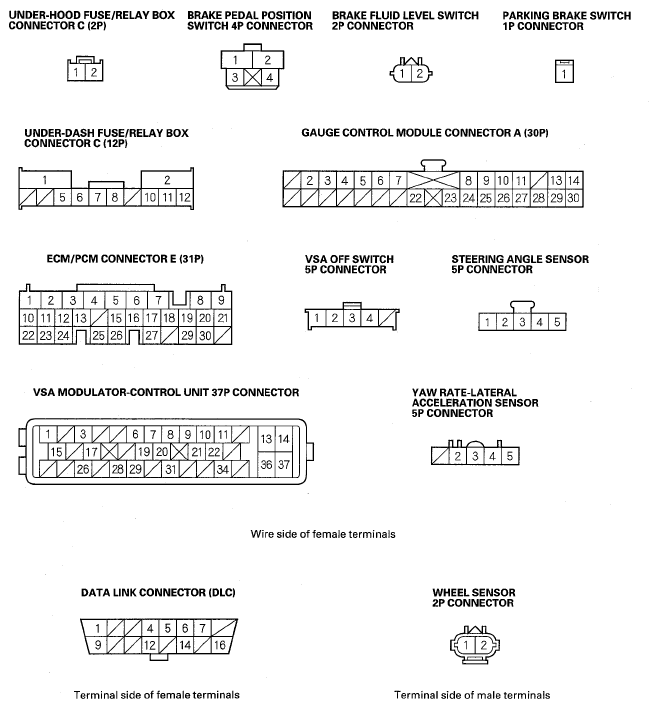

Fig 3: Identifying VSA System Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
