Secondary Shaft Bearing Replacement

Special Tools Required

• Adjustable bearing remover set 07JAC-PH80000
• Bearing remover shaft set, 30 mm 07936-8890300
• Bearing remover shaft handle 07936-3710100
• Sliding hammer weight 07741-0010201
• Driver 07749-0010000
• Attachment, 37 x 40 mm 07746-0010200
• Attachment, 62 x 68 mm 07746-0010500

1. Remove the bolt, then remove the lock washer (A) and the bearing set plate (B).
   Fig 1: Identifying Lock Washer And Bearing Set Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the secondary shaft bearing from the torque converter housing using the adjustable bearing remover set and the sliding hammer weight.
   Fig 2: Removing Secondary Shaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the ATF guide collar from the torque converter housing.
   Fig 3: Identifying ATF Guide Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

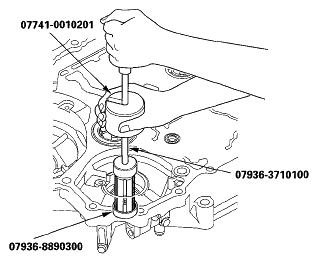

4. Remove the 29 x 39 x 9.5 mm secondary shaft bearing from the torque converter housing using the bearing remover shaft set, 30 mm, the bearing remover shaft handle, and the sliding hammer weight.
   Fig 4: Removing Secondary Shaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the 29 x 39 x 9.5 mm bearing into the torque converter housing using the driver and the attachment, 37 x 40 mm.
   Fig 5: Installing Secondary Shaft Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install new O-rings (A) on the ATF guide collar (B), then install the guide collar in the torque converter housing.
   Fig 6: Identifying O-Rings And ATF Guide Collar

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the bearing in the direction shown in the housing using the driver and the attachment, 62 x 68 mm.
   Fig 7: Installing Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Check that the bearing groove aligns with the set plate mounting surface, then install the set plate (A) by aligning it with the bearing groove.
   Fig 8: Set Plate And Lock Washer With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Install a new lock washer (B) and the bolt, then bend the lock tab of the lock washer against the bolt head.
