Main Valve Body Disassembly, Inspection, and Reassembly
- Clean all parts thoroughly in solvent, and dry them with compressed air. Blowout all passages.
- Inspect the main valve body for scoring and damage.
- Check all valves for free movement. If any fail to slide freely, refer to the valve body repair (see VALVE BODY REPAIR ).
- Coat all parts with ATF during assembly.

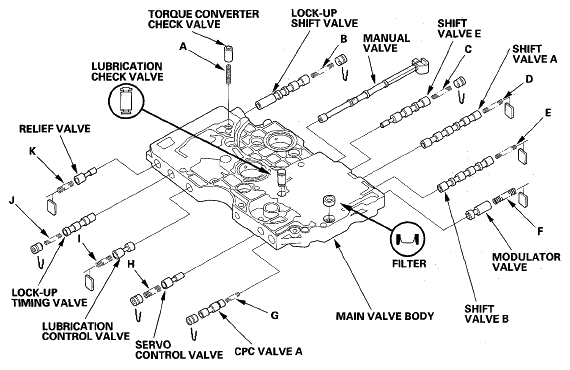

- Replace the filter with a new one, and install it and the lubrication check valve in the direction shown.
VALVE SPRING SPECIFICATIONS
VALVE SPRING SPECIFICATIONS
| Valve Springs | Standard (New)-Unit: mm (in.) | ||||
|---|---|---|---|---|---|
| Wire Diameter | O.D. | Free Length | No. of Coils | ||
| A | Torque converter check valve spring | 1.1 (0.043) | 8.6 (0.339) | 35,0 (1.378) | 12.6 |
| B | Lock-up shift valve spring | 1.0 (0.039) | 6.6 (0.260) | 35.5 (1.398) | 18.2 |
| C | Shift valve E spring | 0.7 (0.028) | 6.6 (0.260) | 42.4 (1.669) | 17.6 |
| D | Shift valve A spring | 0.9 (0.035) | 6.6 (0.260) | 50.5 (1.988) | 23.3 |
| E | Shift valve B spring | 0.8 (0.031) | 6.6 (0.260) | 49.1 (1.933) | 21.7 |
| F | Modulator valve spring | 1.6 (0.063) | 10.4 (0.409) | 33.5 (1.319) | 9.8 |
| G | CPC valve A spring | 0.7 (0.028) | 6.1 (0.240) | 17.8 (0.701) | 7.9 |
| H | Servo control valve spring | 0.9 (0.035) | 9.6 (0.378) | 30.2 (1.189) | 8.4 |
| I | Lubrication control valve spring | 0.9 (0.035) | 8.7 (0.343) | 25.0 (0.984) | 7.2 |
| J | Lock-up timing valve spring | 0.6 (0.024) | 6.6 (0.260) | 30.9 (1.217) | 11.1 |
| K | Relief valve spring | 1.0 (0.039) | 9.6 (0.378) | 28.1 (1.106) | 7.7 |
