Home >> Acura >> 2007 >> TL Base >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> Component Location Index

Component Location Index

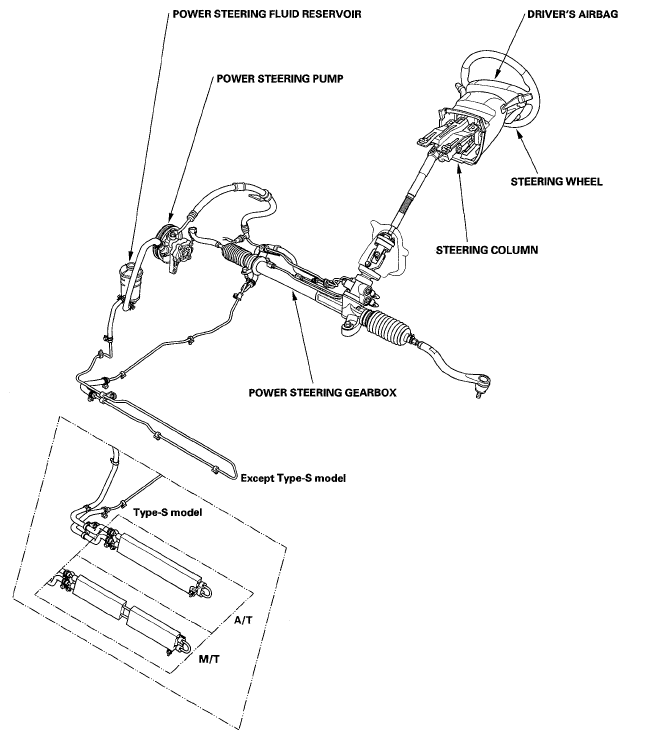

Fig 1: Identifying Steering Component Location

G05461473

Courtesy of AMERICAN HONDA MOTOR CO., INC.
