Under-hood Multi-Relay Box Connector End View

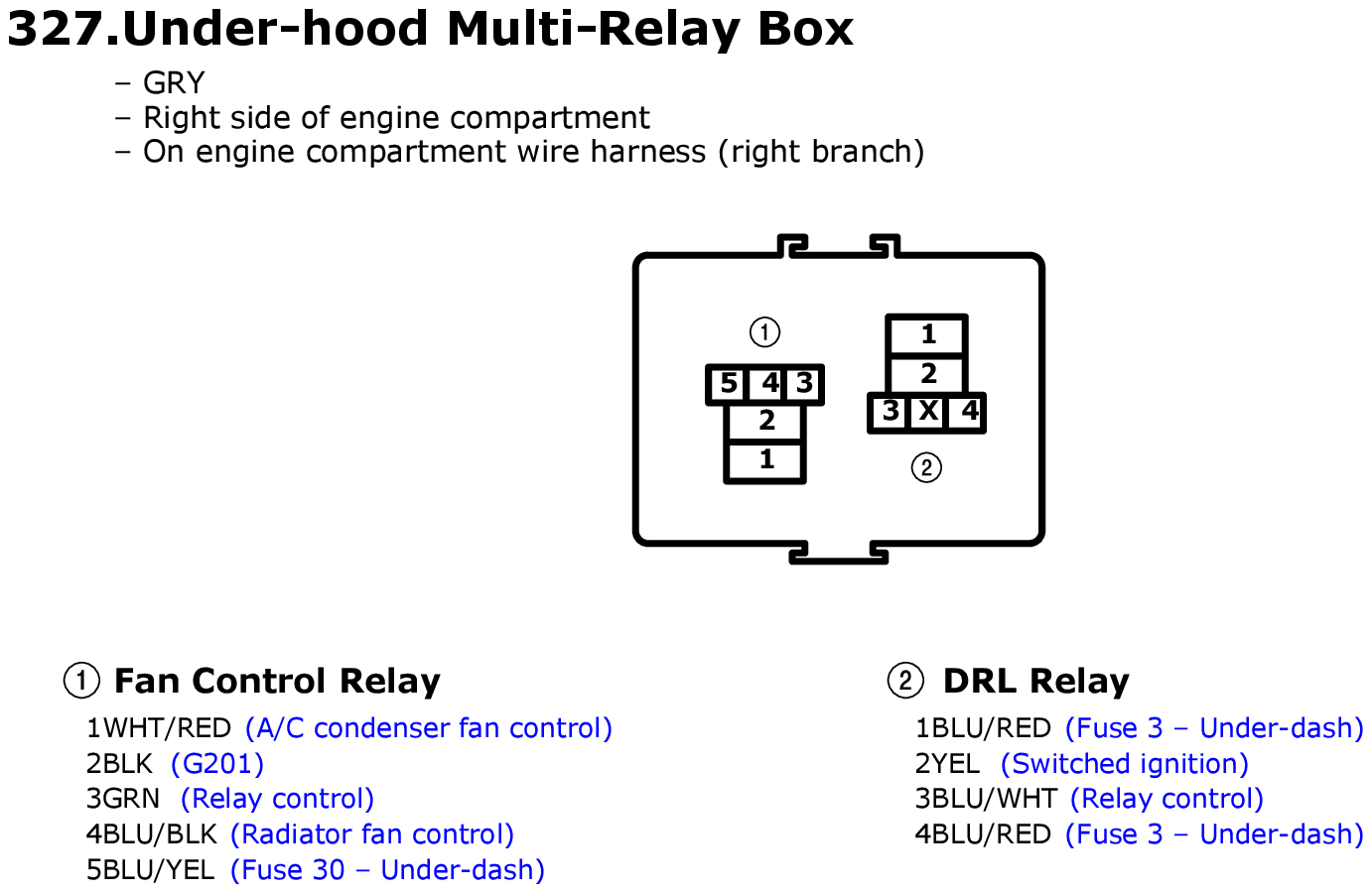

Fig 1: Under-hood Multi-Relay Box Connector End View

GHHW11400

Courtesy of AMERICAN HONDA MOTOR CO., INC.
