Right Rear Power Window Switch Connector End View

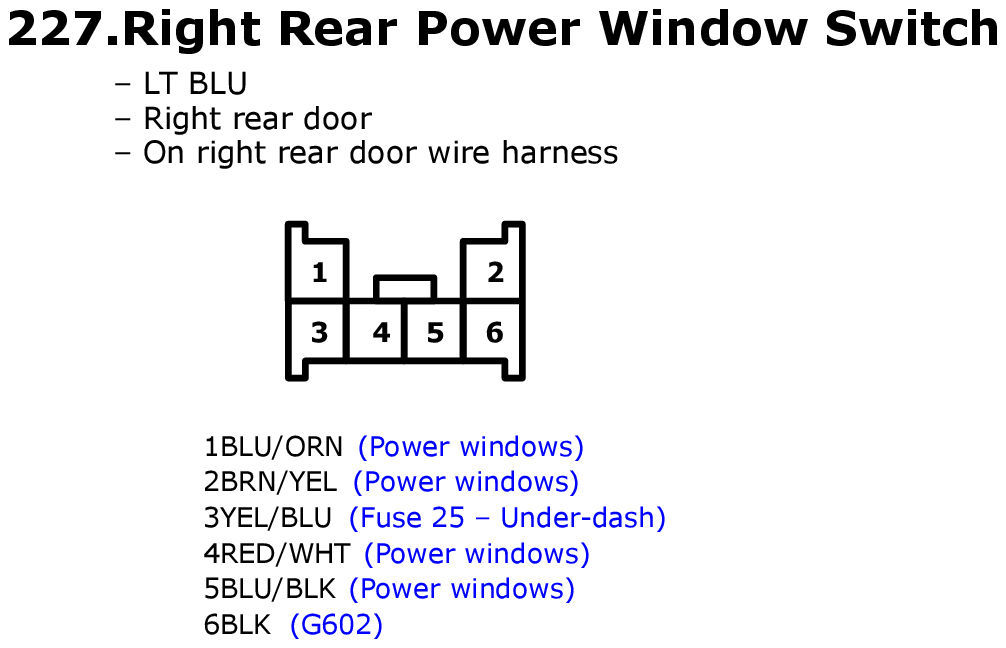

Fig 1: Right Rear Power Window Switch Connector End View

GHHW11300

Courtesy of AMERICAN HONDA MOTOR CO., INC.
