Left Power Mirror Connector End View

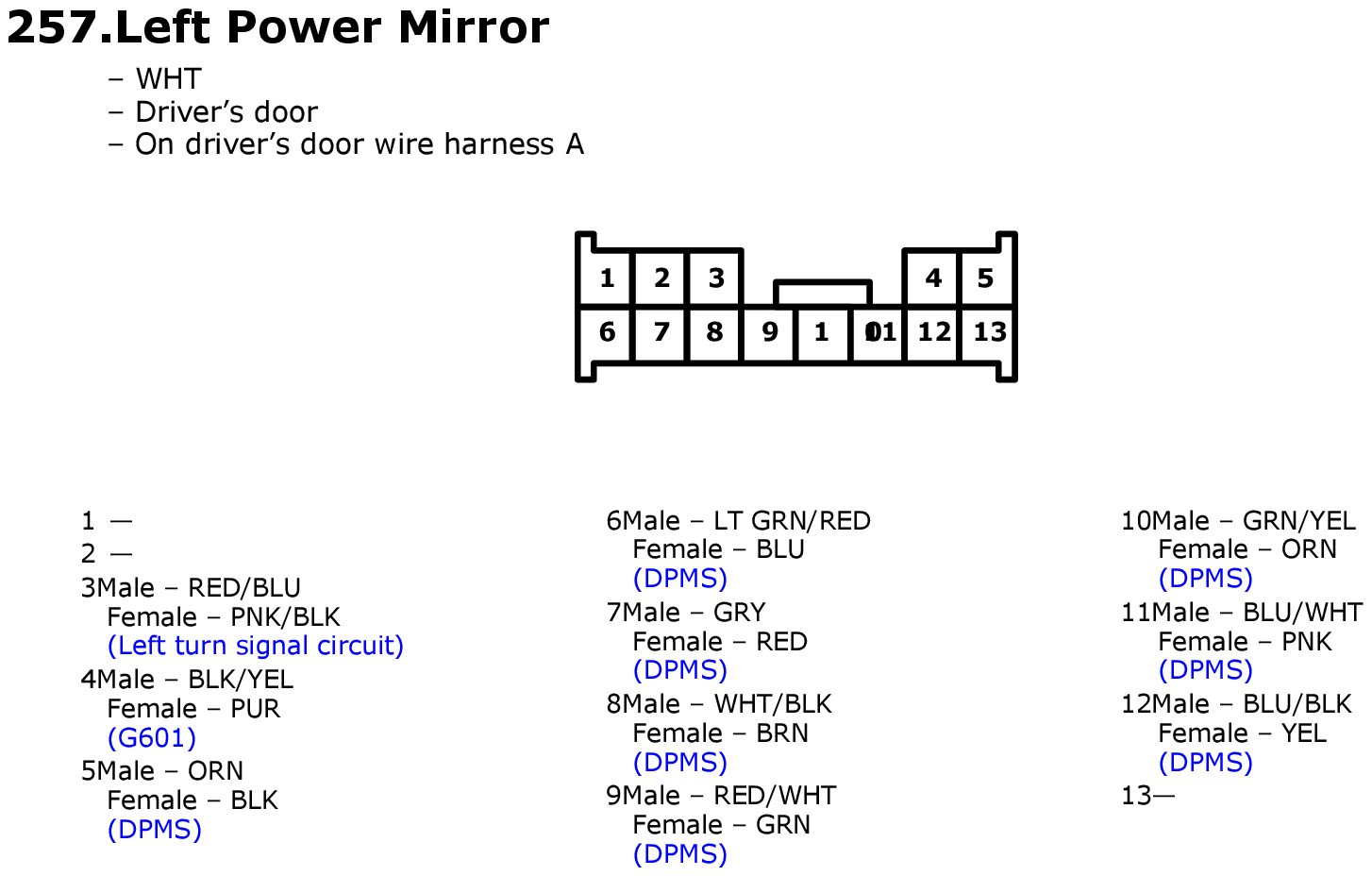

Fig 1: Left Power Mirror Connector End View

GHHW11330

Courtesy of AMERICAN HONDA MOTOR CO., INC.
