Clock Connector End View

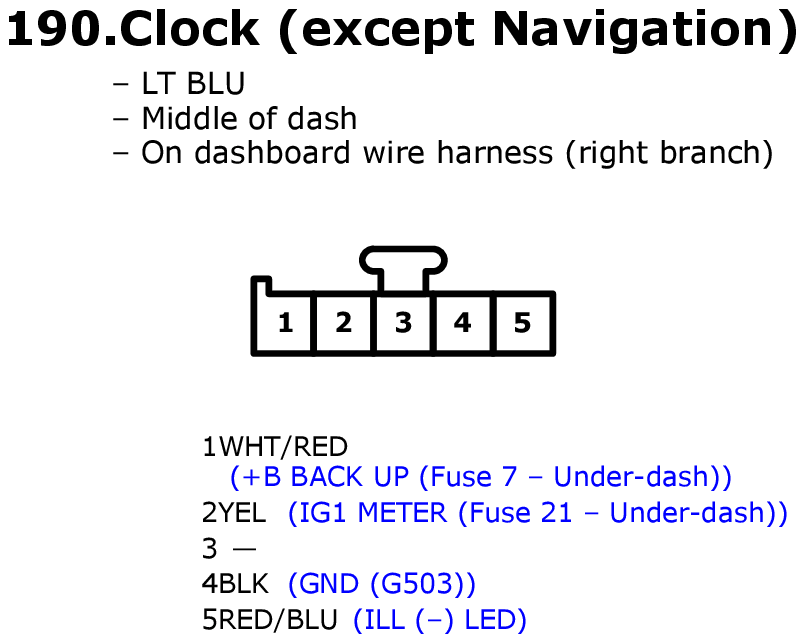

Fig 1: Clock Connector End View
GHHW11263Courtesy of AMERICAN HONDA MOTOR CO., INC.
