Active Noise Control Front Microphone Connector End View

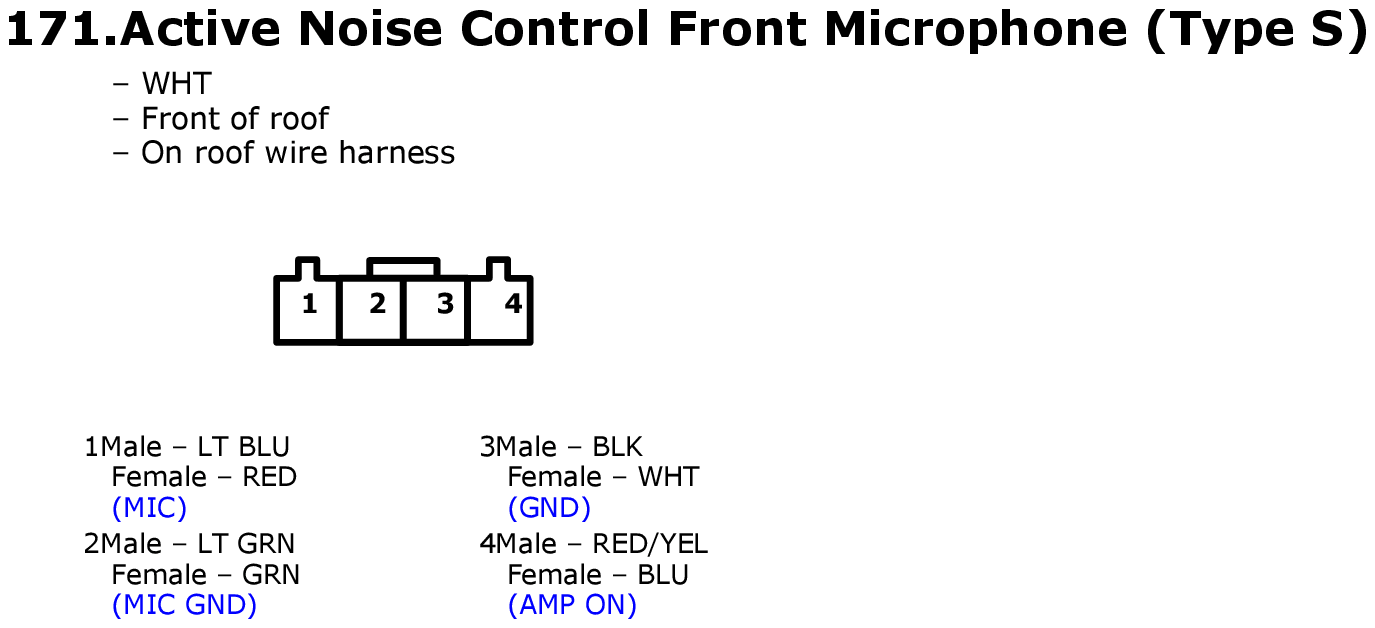

Fig 1: Active Noise Control Front Microphone Connector End View

GHHW11244

Courtesy of AMERICAN HONDA MOTOR CO., INC.
