DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

Fig 1: Shift Solenoid Valve A - Circuit Diagram

G04816881

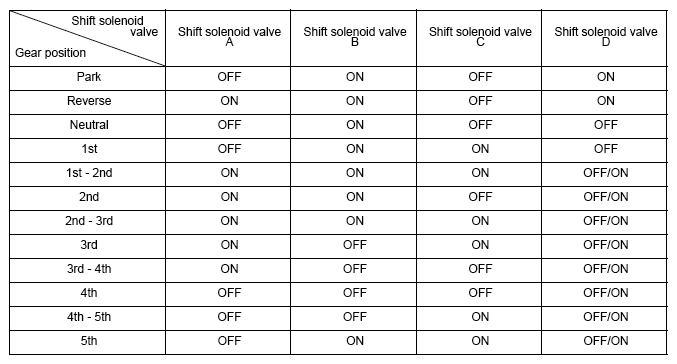

Fig 2: Shift Solenoid Valve Driving Signal Combination Table

G04836710
