J35A8 engine

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the oil jet bolt (A), then remove the oil jet (B).

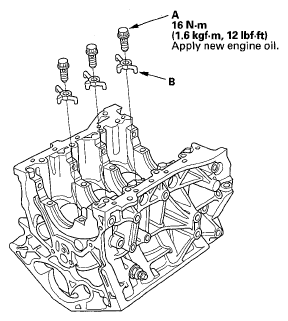

    Fig 1: Oil Jet Bolt With Torque Specifications
    G05457813Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the new oil jet and tighten the oil jet bolt.
  4. Install the crankshaft (see CRANKSHAFT AND PISTON INSTALLATION ).
