Under-hood Fuse/ Relay Box

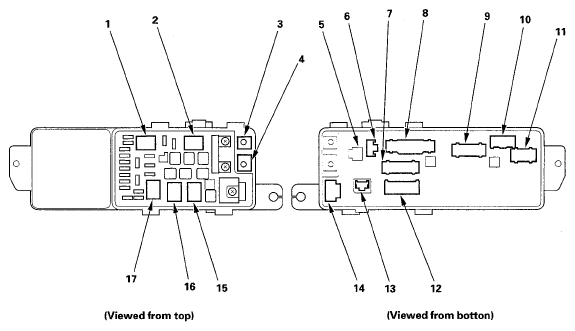

UNDER-HOOD FUSE / RELAY BOX REFERENCE
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A/C compressor clutch relay | 16 | 4 | |
| A/C condenser fan relay | 2 | 4 | |
| A (ELD unit) | 13 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| B | 5 | Not used | |
| Blower motor relay | 15 | 4 | |
| C | 6 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| D | 12 | 9 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| E | 7 | 16 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| F | 8 | 20 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| G | 14 | 2 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| H | 9 | 14 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| J | 10 | 5 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| K | 11 | 10 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Radiator fan relay | 1 | 4 | |
| Rear window defogger relay | 17 | 4 | |
| T101 | 4 | Starter cable (see CONNECTOR TO HARNESS INDEX ) | |
| T102 | 3 | Engine wire harness
|
