Main Switch Test
- Remove the glove box housing (see
GLOVE BOX HOUSING REMOVAL/INSTALLATION
).

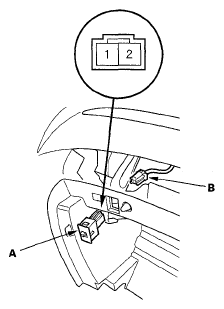

- Carefully push the main switch (A) out from behind the glove box housing.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the 2P connector (B) from the main switch.
- Check for continuity between the No. 1 and No. 2 terminals.
- With the main switch ON, there should be continuity.
- With the main switch OFF, there should be no continuity.
- If the continuity check is not as specified, replace the main switch.
