Circuit Diagram

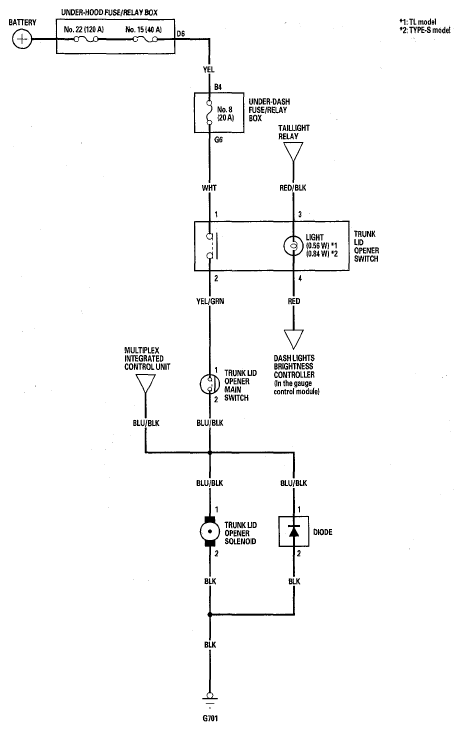

Fig 1: Trunk Lid Opener - Circuit Diagram

G05462840

Courtesy of AMERICAN HONDA MOTOR CO., INC.
