Circuit Diagram

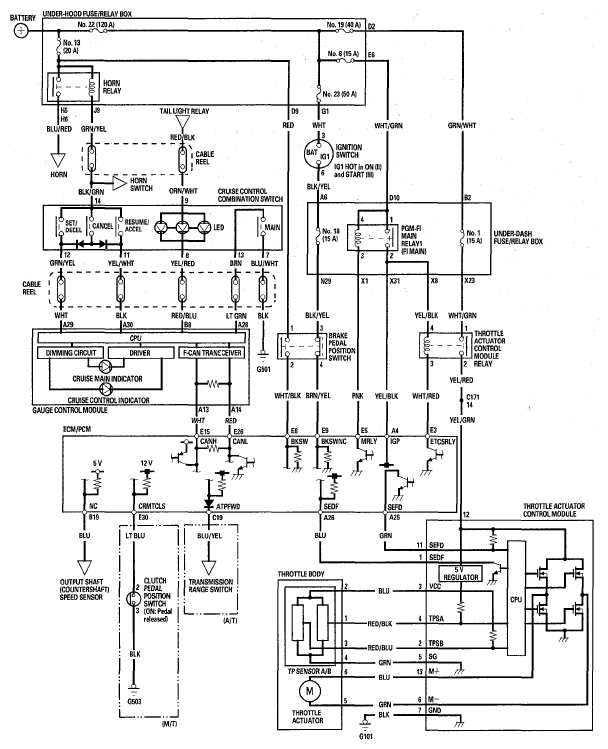

Fig 1: Cruise Control System - Circuit Diagram

G05457489

Courtesy of AMERICAN HONDA MOTOR CO., INC.
