MAP Sensor Connector End View

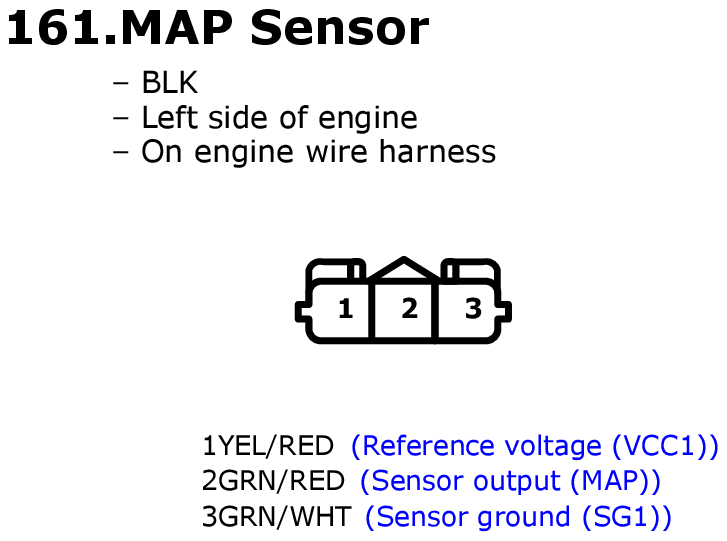

Fig 1: MAP Sensor Connector End View

GHHW11234

Courtesy of AMERICAN HONDA MOTOR CO., INC.
