Back-up Sensor Beeper Assembly Connector End View

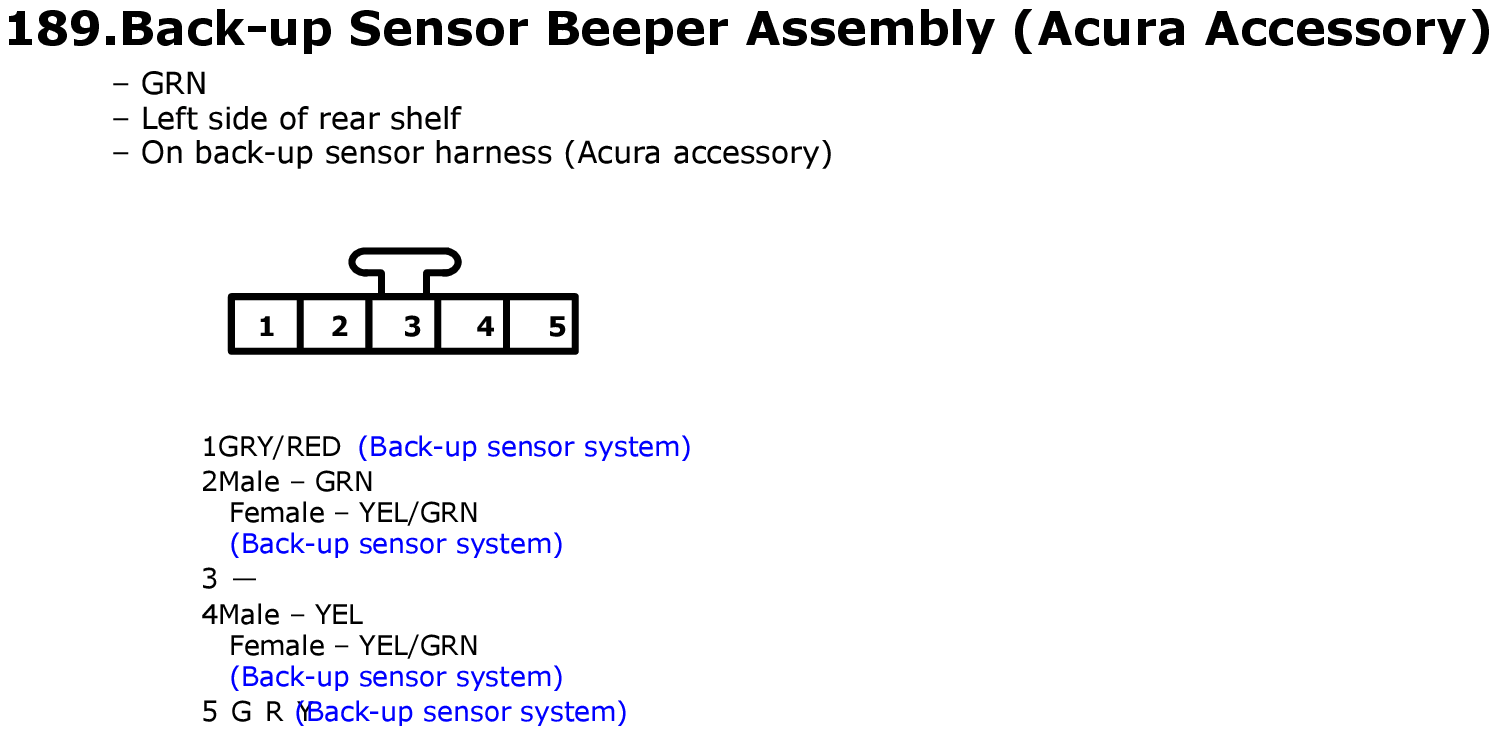

Fig 1: Back-up Sensor Beeper Assembly Connector End View

GHHW11262

Courtesy of AMERICAN HONDA MOTOR CO., INC.
