Dual Mode Control System

All modes (except defroster) can be controlled independently.

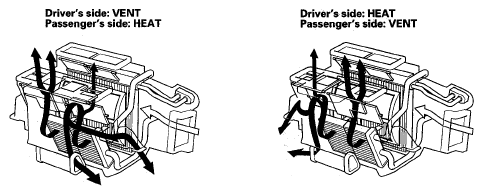

Fig 1: Dual Mode Control System Diagram

G05462384

Courtesy of AMERICAN HONDA MOTOR CO., INC.
