Keyless Receiver Unit Connector End View

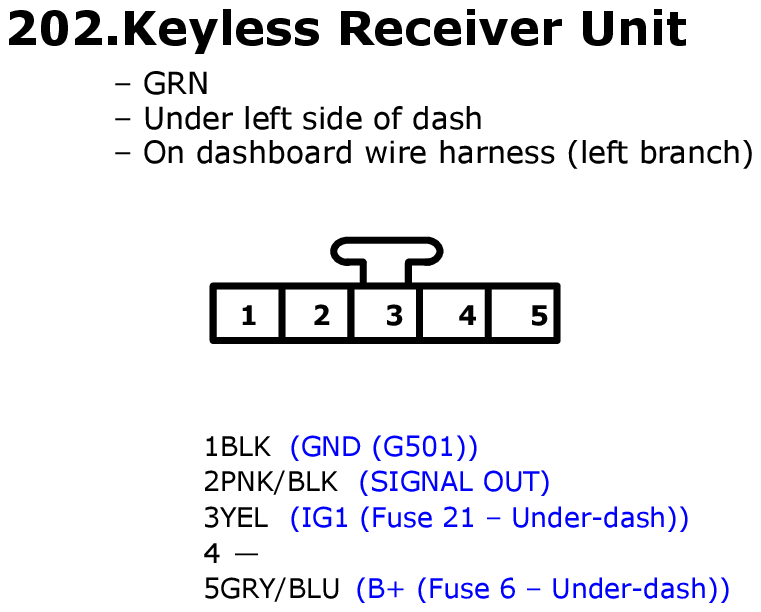

Fig 1: Keyless Receiver Unit Connector End View

GHHW11275

Courtesy of AMERICAN HONDA MOTOR CO., INC.
