Automatic Lighting Control Unit Connector End View

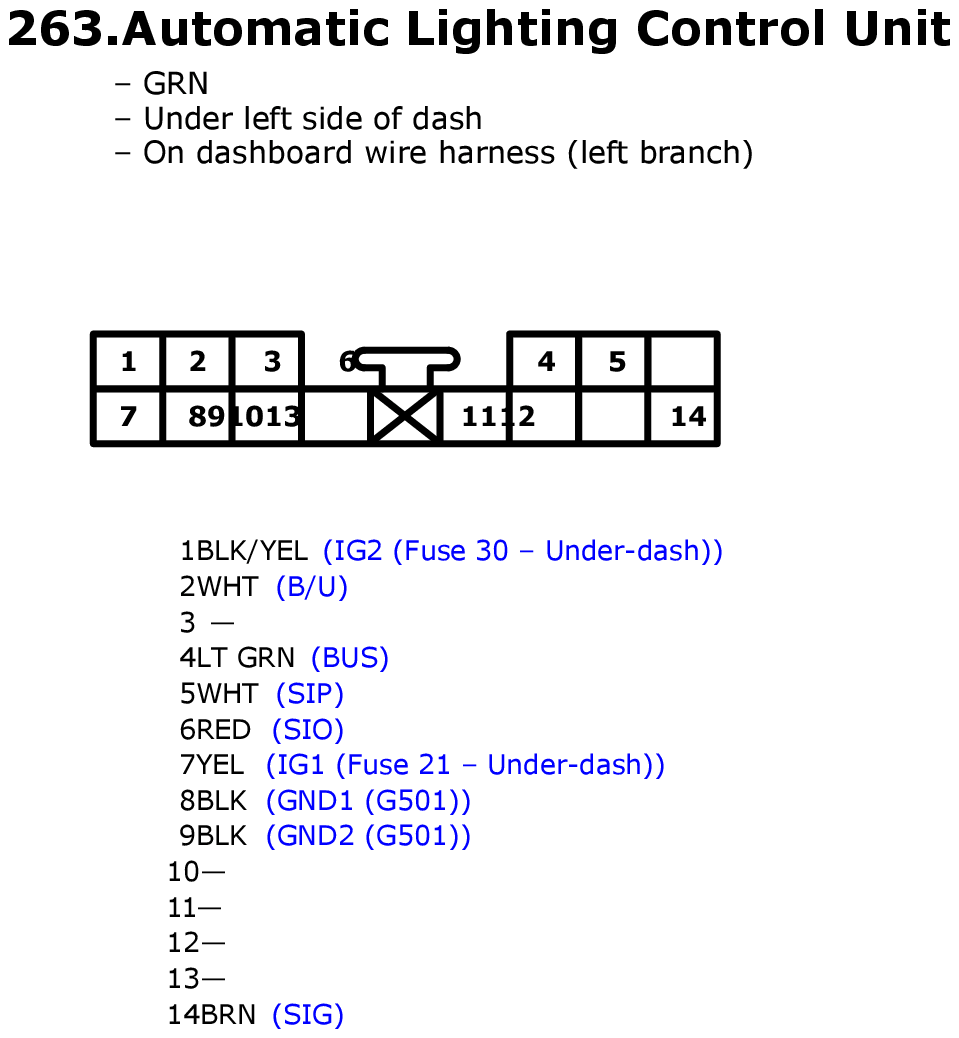

Fig 1: Automatic Lighting Control Unit Connector End View

GHHW11336

Courtesy of AMERICAN HONDA MOTOR CO., INC.
