Voice Control Switch Test

  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Remove the 20P connector from the cable reel.

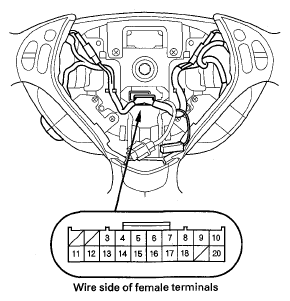

    Fig 1: Identifying 20P Connector From Cable Reel
    G05463244Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between the No. 10 and No. 18 terminals in each switch position according to the table.
    RESISTANCE CHART

    Position Resistance
    OFF About 10 kΩ
    Talk button pressed About 2.2 kΩ
    Back button pressed About 650 kΩ
  4. If the resistance is not as specified, replace the voice control switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
