AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs (USA models with navigation)

When replacing an AcuraLink control unit (XM receiver) connector, match the wires to the cavities listed in the following tables.

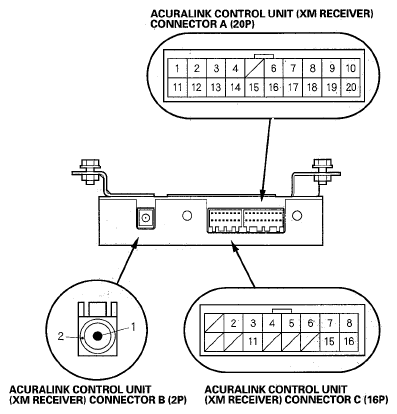

Fig 1: Identifying AcuraLink Control Unit (XM Receiver) Connector Terminal (USA Models With Navigation)
G05462992Courtesy of AMERICAN HONDA MOTOR CO., INC.

AcuraLink Control Unit (XM Receiver) Connector A (20P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR A (20P) REFERENCE

Cavity Wire Connects to
A1 WHT/RED Constant power
A2 YEL/RED ACC (Main power supply)
A3 WHT Navigation unit (NAVI COMM 3)
A4 RED Navigation unit (NAVI COMM 1)
A6 WHT Communication bus line (CAN-HI)
A7 RED/WHT ECU BUS+ (GA-NET)
A8 GRY(1) Audio unit (AUDIO SH)
A9 RED Audio unit (AUDIO L+)
A10 WHT Audio unit (AUDIO R+)
A11 BLK Ground (G604)
A12 YEL IG1 (AcuraLink control unit (XM receiver) power supply)
A13 BLK Navigation unit (NAVI COMM 4)
A14 GRN Navigation unit (NAVI COMM 2)
A15 GRY(1) Navigation unit (NAVI COMM SH)
A16 RED Communication bus line (CAN LO)
A17 RED/BLK ECU BUS- (GA-NET)
A18 GRY(1) ECU BUS SH (GA-NET)
A19 GRN Audio unit (AUDIO L-)
A20 BLK Audio unit (AUDIO R-)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AcuraLink Control Unit (XM Receiver) Connector B (2P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR (2P) REFERENCE

Cavity Wire Connects to
B1 - XM antenna (SAT/TER)
B2 - XM antenna (SAT/TER SH)

AcuraLink Control Unit (XM Receiver) Connector C (16P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR (16P) REFERENCE

Cavity Wire Connects to
C2(1) GRY Audio unit, HandsFreeLink control unit (TELM SIG SH)
C3 GRN Audio unit, HandsFreeLink control unit (TELM SIG+)
C4 YEL Audio unit (HIP MUTE)
C5 PNK Communication bus line (B-CAN)
C6(1) GRY HandsFreeLink control unit (HFL COMM SH)
C7 BLK HandsFreeLink control unit (HFL COMM 3)
C8 RED HandsFreeLink control unit (HFL COMM 1)
C11 RED Audio unit, HandsFreeLink control unit (TELM SIG-)
C15 GRN HandsFreeLink control unit (HFL COMM 4)
C16 WHT HandsFreeLink control unit (HFL COMM 2)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
