Transfer Hypoid Drive Gear Bearing Replacement

Special Tools Required

• Driver 07749-0010000
• Attachment, 42 x 47 mm 07746-0010300
• Attachment, 40 x 50 mm 07LAD-PW50601

1. Remove the tapered roller bearing (A) from the transfer hypoid drive gear (B) using the driver, the attachment (42 x 47 mm), bearing separator (C) and a press.
   Fig 1: Removing Tapered Roller Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new bearing on the transfer hypoid drive gear using the driver, the attachment (40 x 50 mm), and a press.

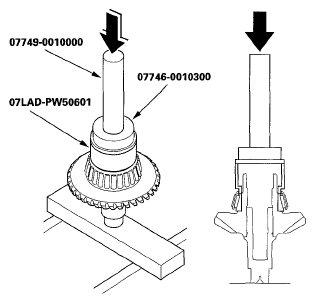

   Fig 2: Installing Bearing Onto Transfer Hypoid Drive Gear

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
