Automatic Transmission
>>
A/T Interlock System
>>
Circuit Diagram
>>
'06-08 Models
'06-08 Models

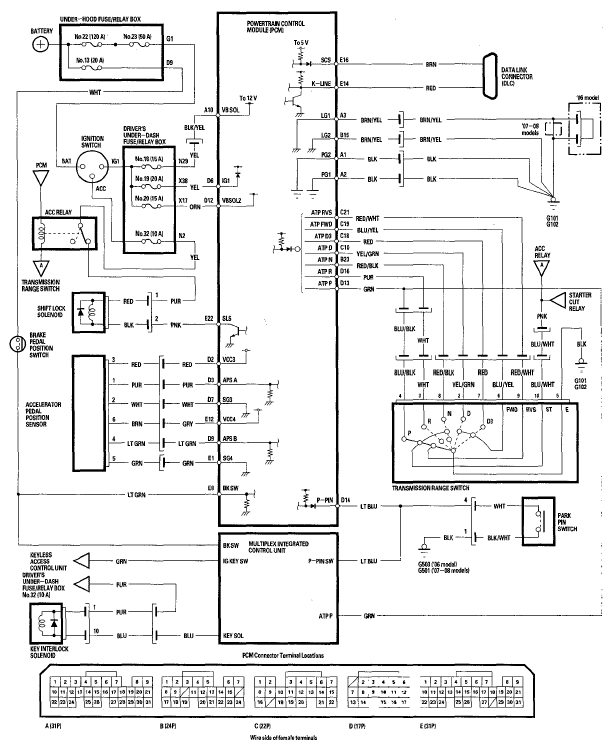

Fig 1: A/T Interlock System (06-08 Models) - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
