'05 Model

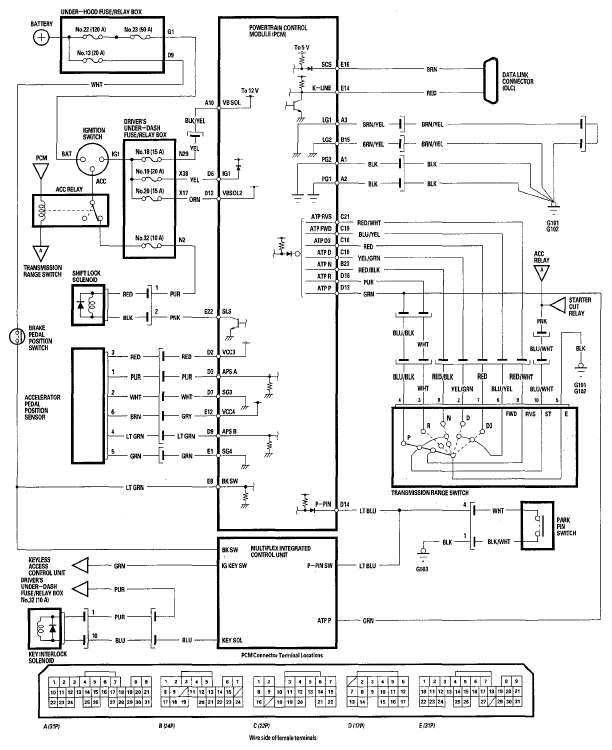

Fig 1: A/T Interlock System (05 Model) - Circuit Diagram

G05495789

Courtesy of AMERICAN HONDA MOTOR CO., INC.
