Seat Belt Tension Reducer
>>
Circuit Diagram
Circuit Diagram

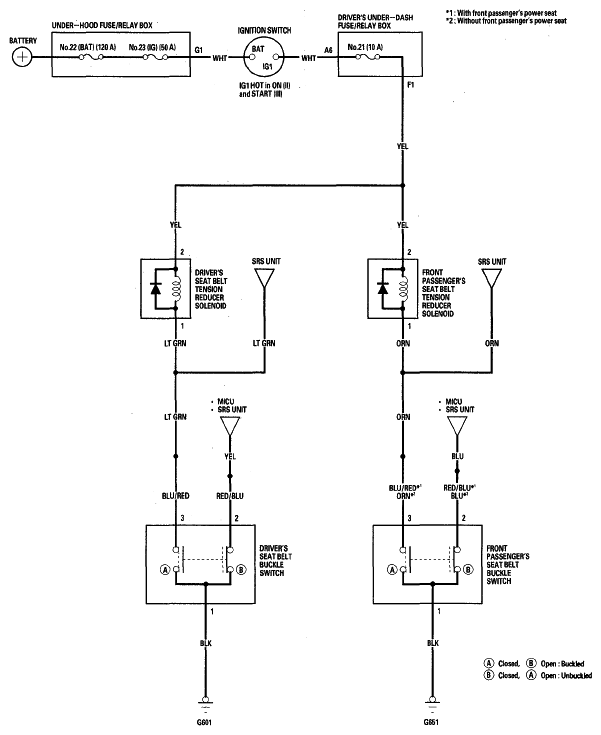

Fig 1: Seat Belt Tension Reducer - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
