TP Sensor/Throttle Actuator Connector End View

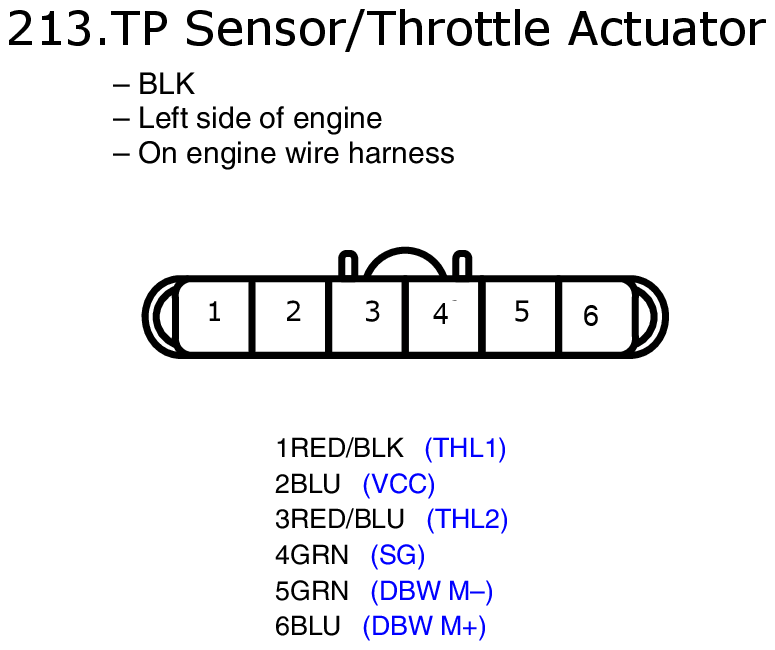

Fig 1: TP Sensor/Throttle Actuator Connector End View
GHHW9206Courtesy of AMERICAN HONDA MOTOR CO., INC.

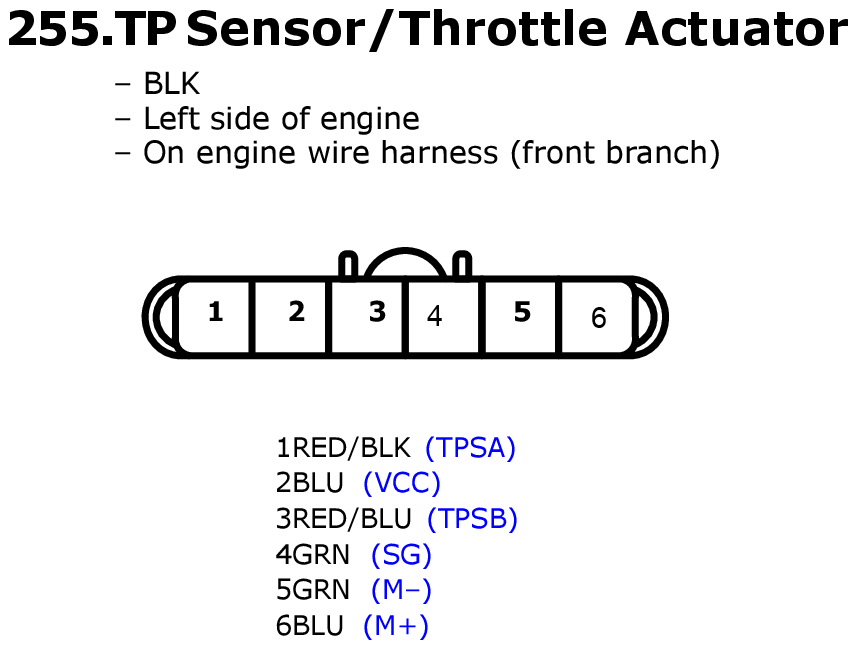

Fig 1: TP Sensor/Throttle Actuator Connector End View
GHHW9680Courtesy of AMERICAN HONDA MOTOR CO., INC.
