Seat Weight Sensor Unit Connector End View

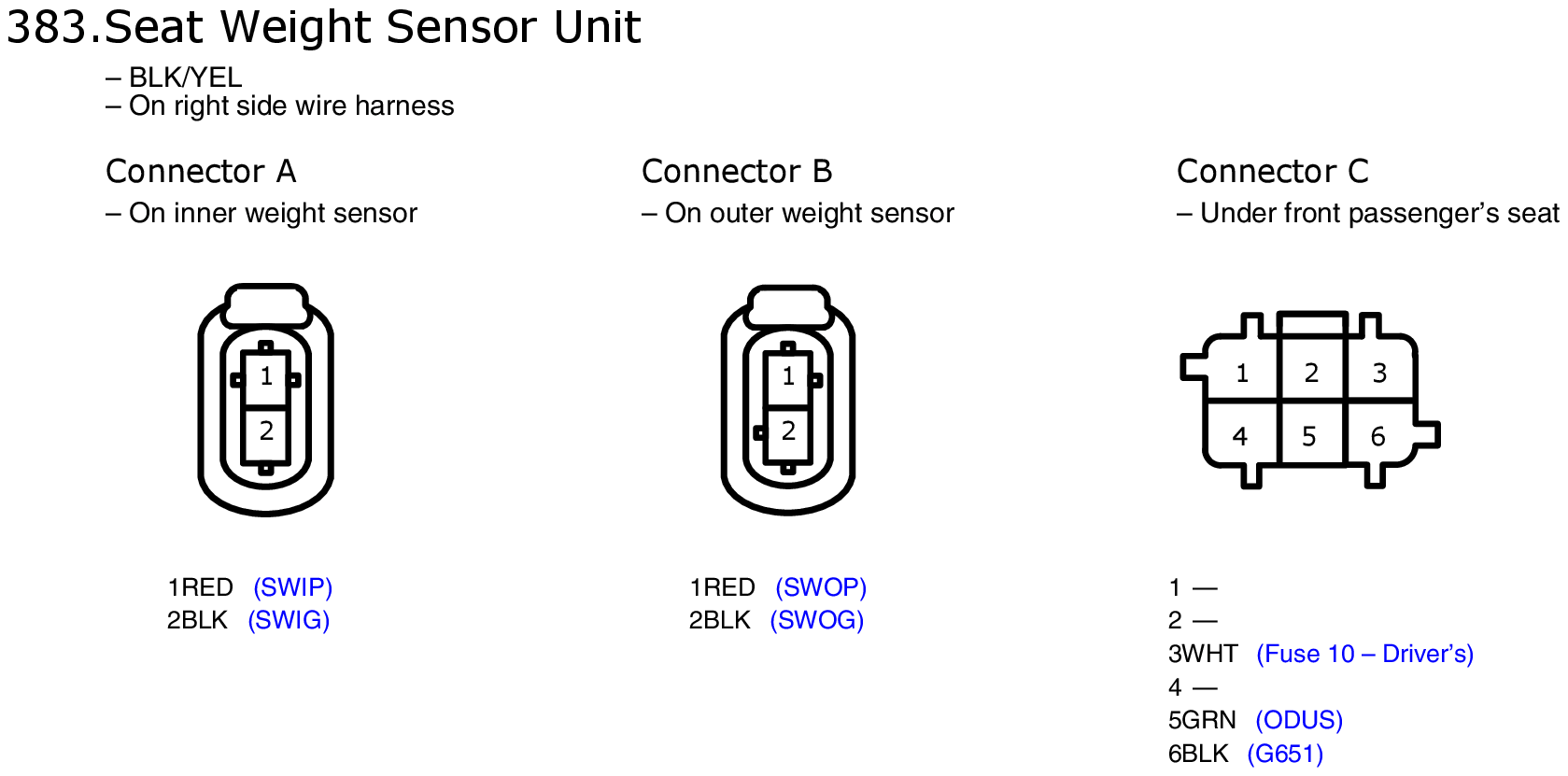

Fig 1: Seat Weight Sensor Unit Connector End View
GHHW9376Courtesy of AMERICAN HONDA MOTOR CO., INC.

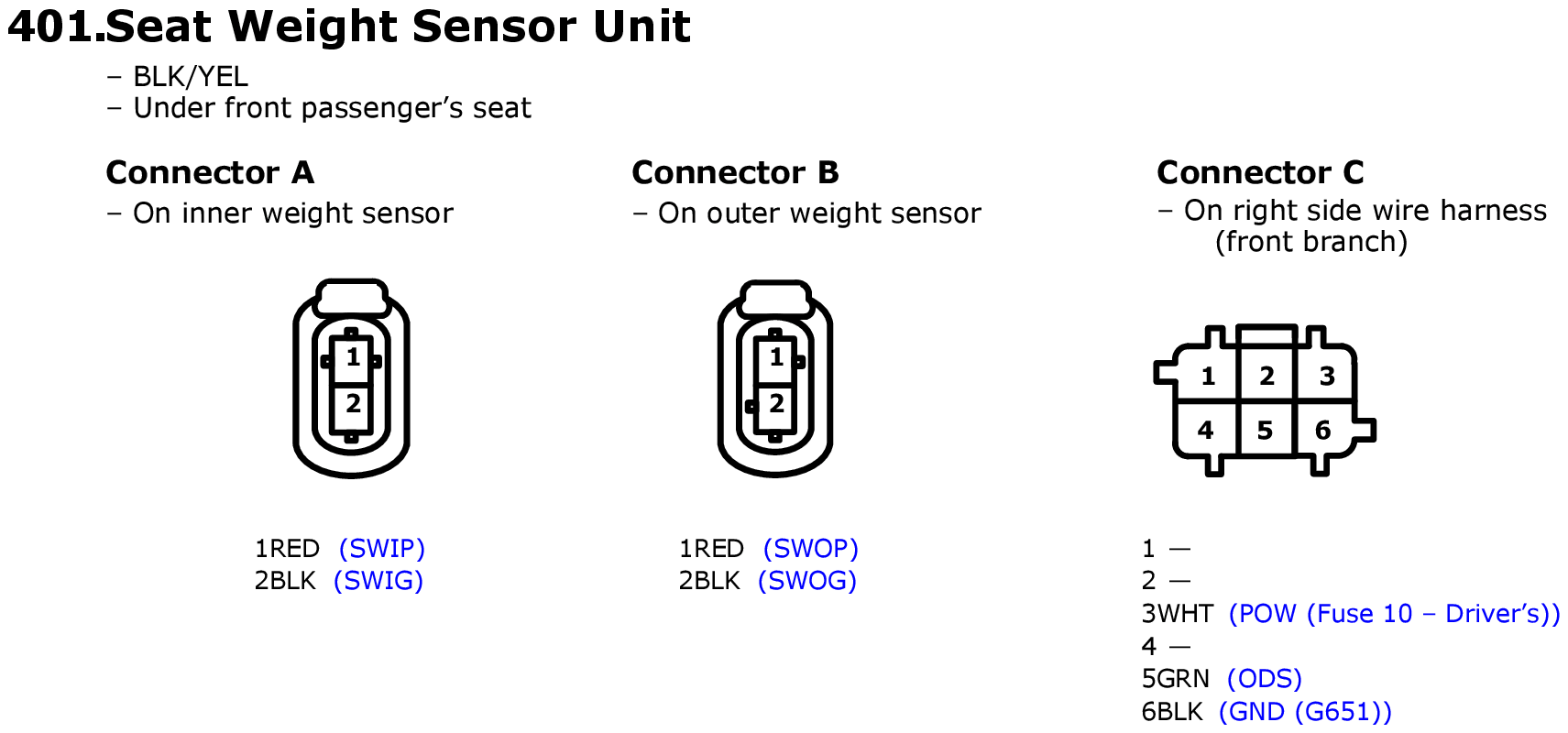

Fig 1: Seat Weight Sensor Unit Connector End View
GHHW9826Courtesy of AMERICAN HONDA MOTOR CO., INC.
