SH-AWD Relay Connector End View
SH-AWD Relay Connector End View

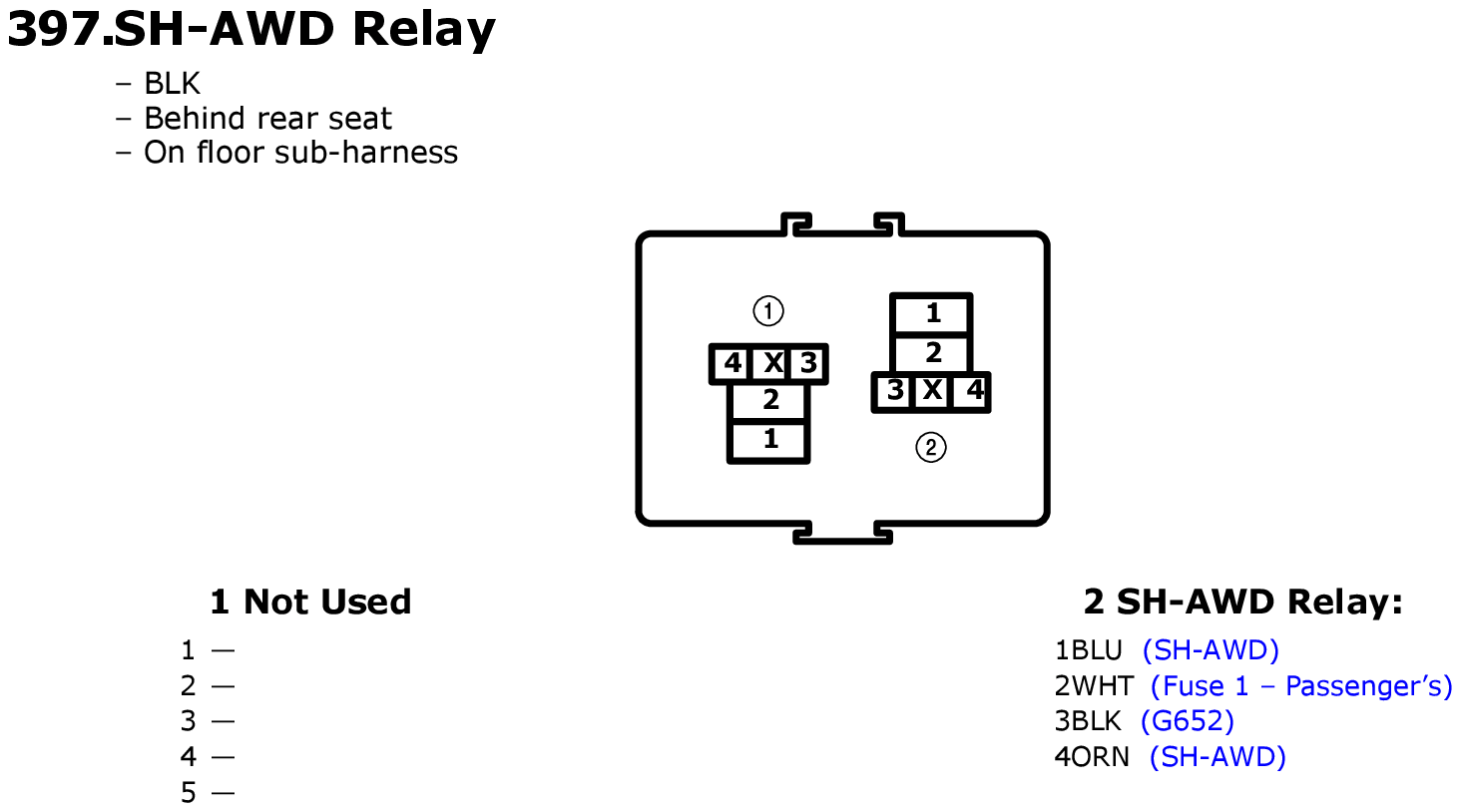

Fig 1: SH-AWD Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

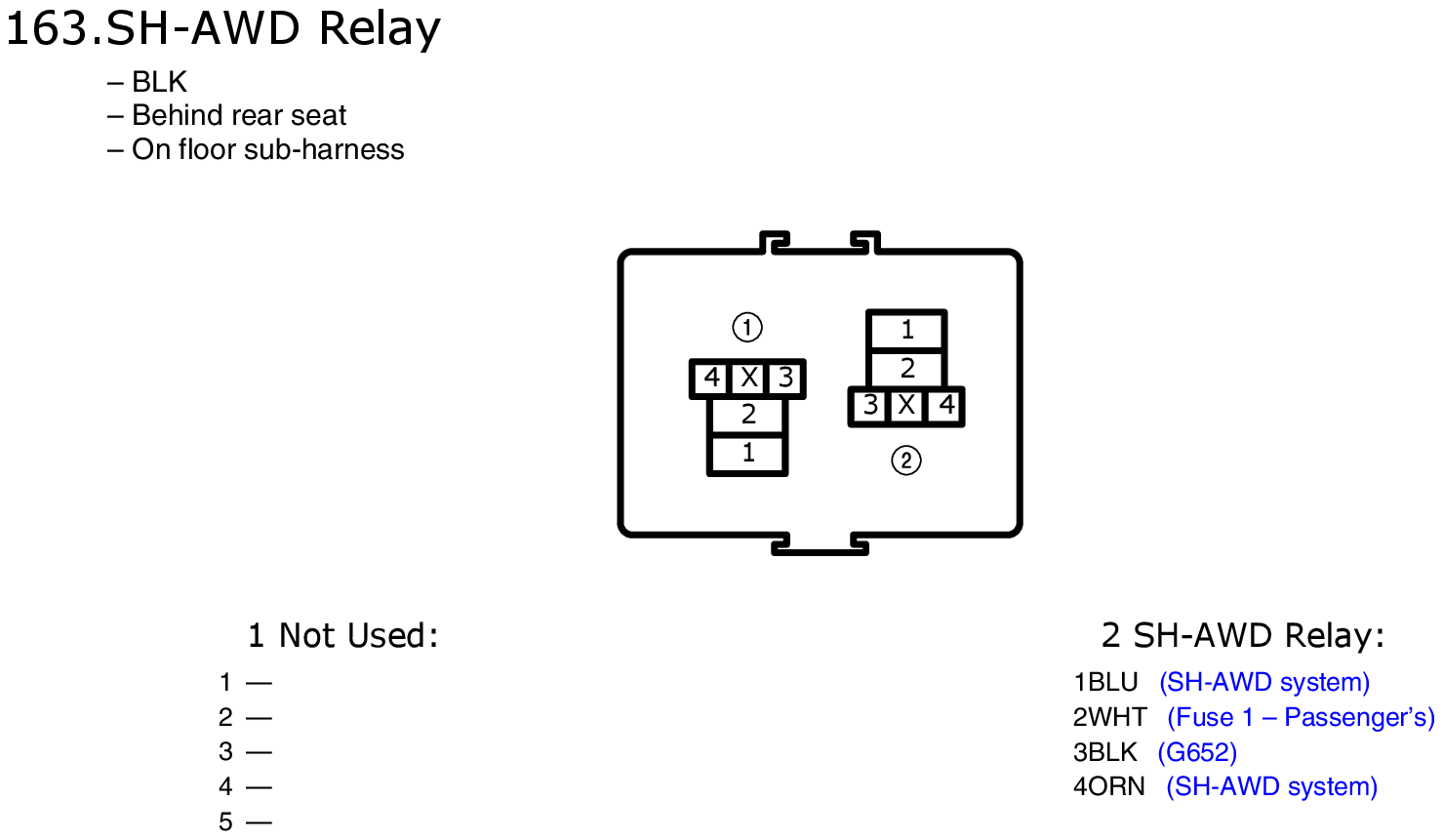

Fig 1: SH-AWD Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
