Rear A/F Sensor Connector End View

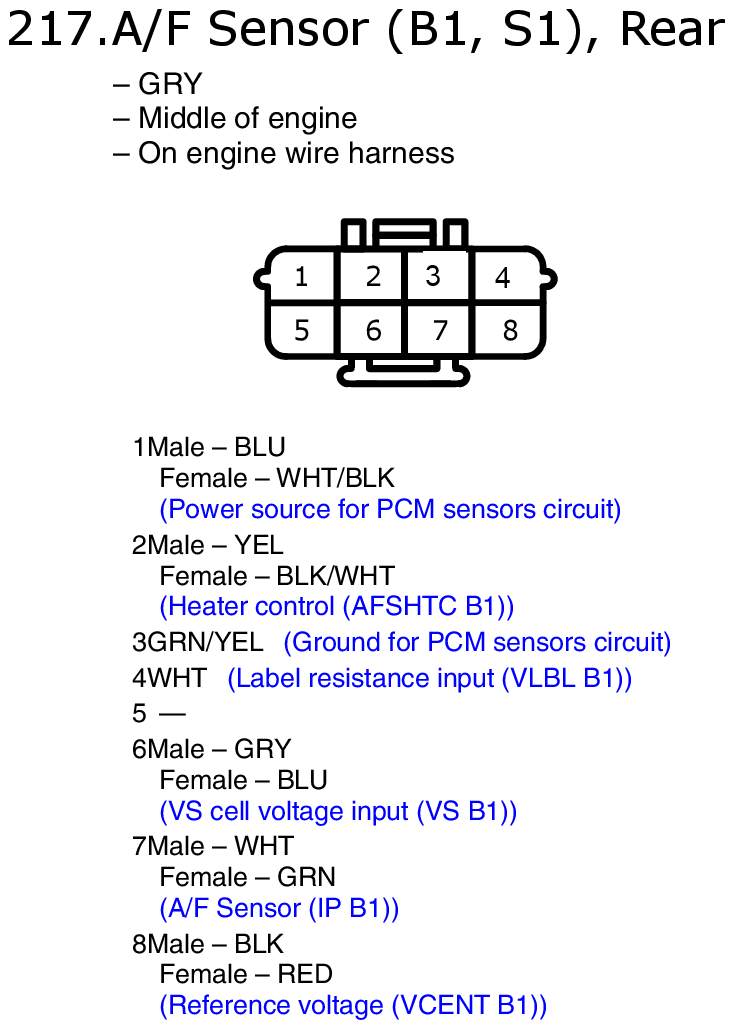

Fig 1: Rear A/F Sensor Connector End View

GHHW9210

Courtesy of AMERICAN HONDA MOTOR CO., INC.
