Imoes Unit Connector End View

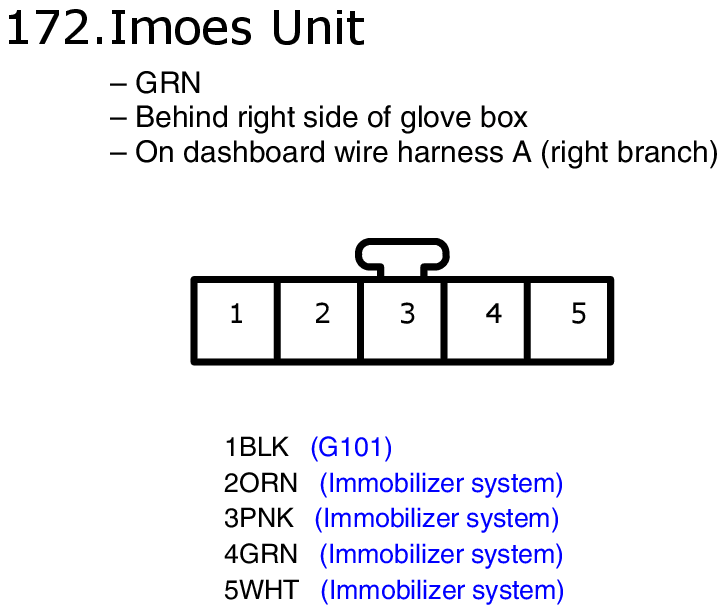

Fig 1: Imoes Unit Connector End View
GHHW9165Courtesy of AMERICAN HONDA MOTOR CO., INC.

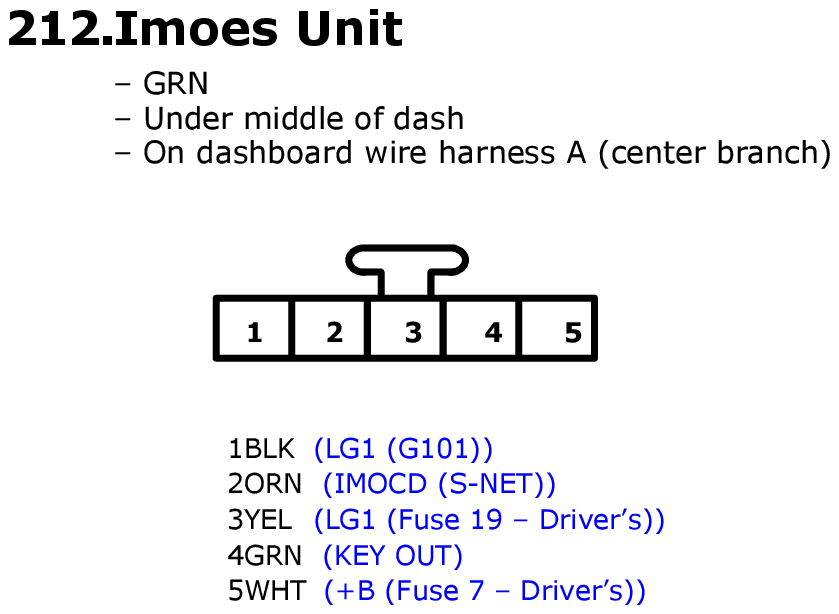

Fig 1: Imoes Unit Connector End View
GHHW9637Courtesy of AMERICAN HONDA MOTOR CO., INC.
