Hazard Warning Switch Connector End View

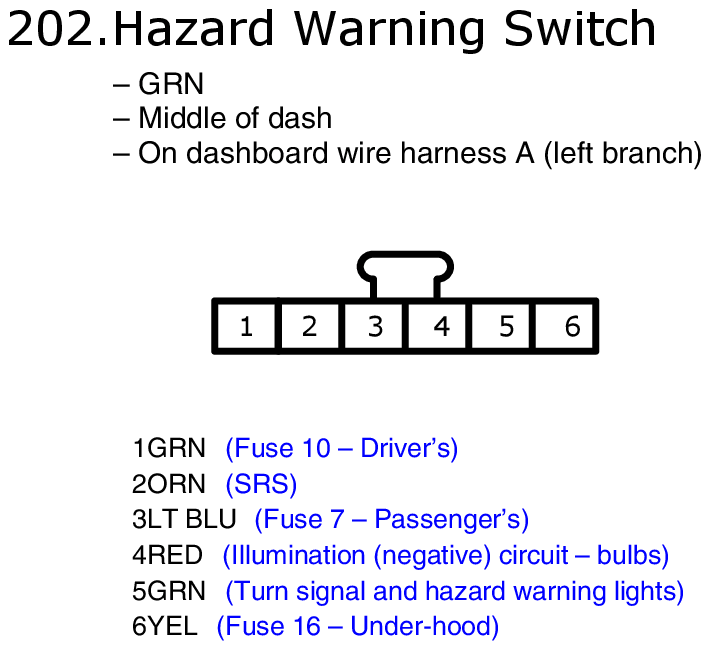

Fig 1: Hazard Warning Switch Connector End View
GHHW9195Courtesy of AMERICAN HONDA MOTOR CO., INC.

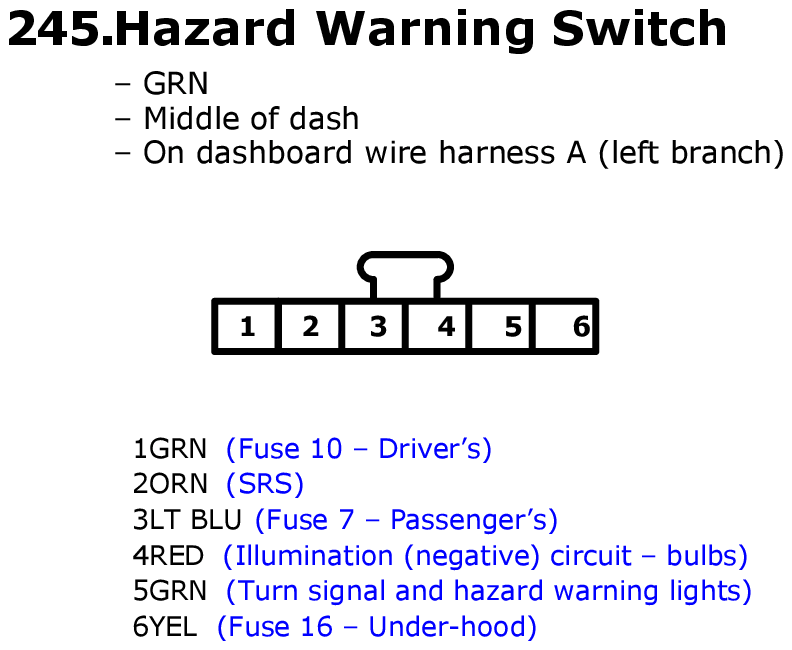

Fig 1: Hazard Warning Switch Connector End View
GHHW9670Courtesy of AMERICAN HONDA MOTOR CO., INC.
