DRL Control Unit (USA) Connector End View

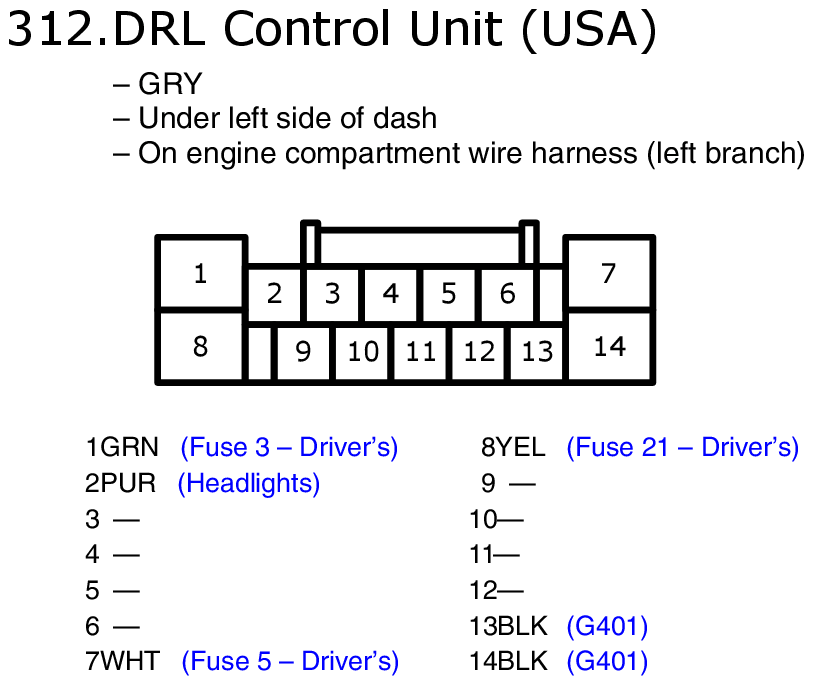

Fig 1: DRL Control Unit (USA) Connector End View
GHHW9305Courtesy of AMERICAN HONDA MOTOR CO., INC.

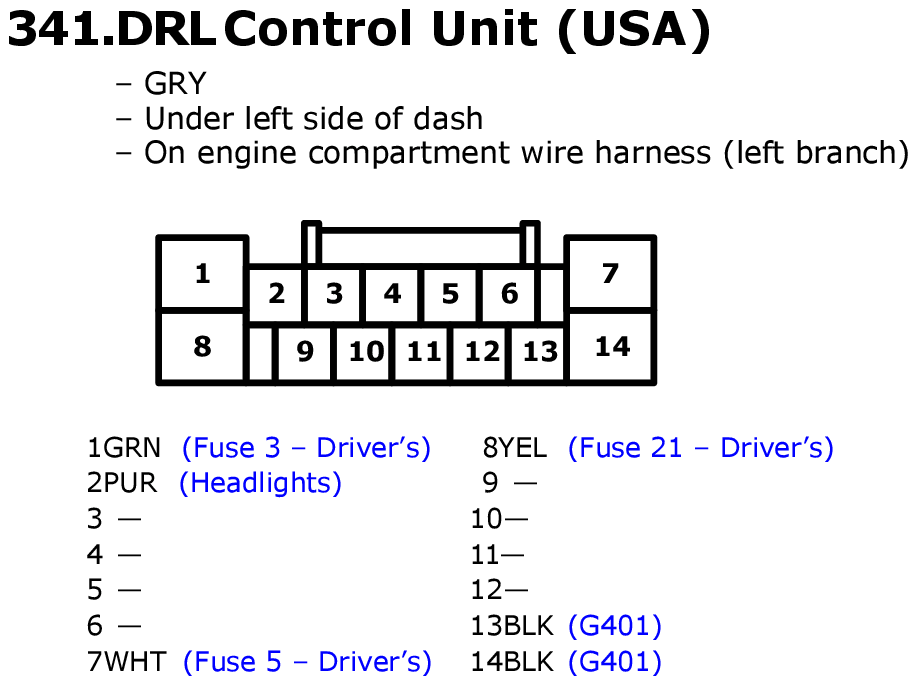

Fig 1: DRL Control Unit (USA) Connector End View
GHHW9766Courtesy of AMERICAN HONDA MOTOR CO., INC.
