C606 Connector End View

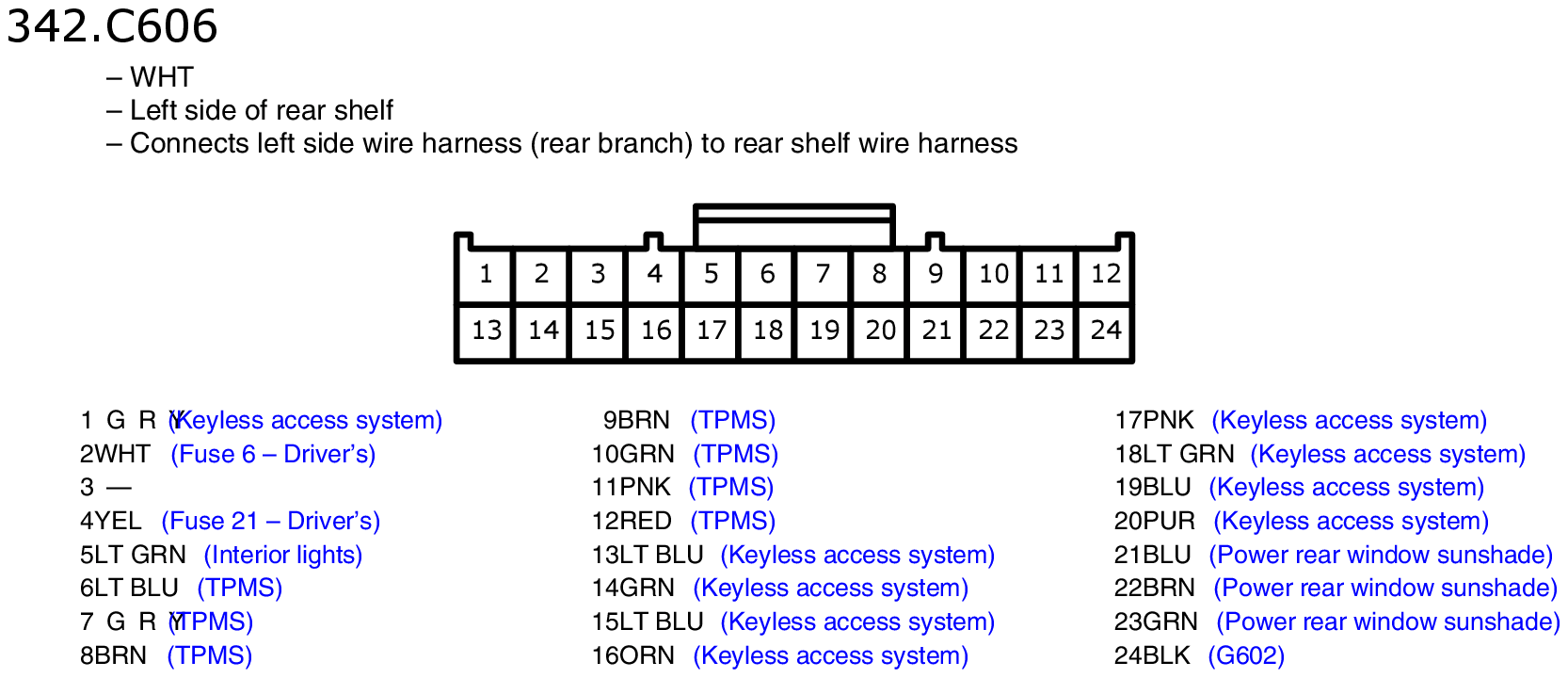

Fig 1: C606 Connector End View

GHHW9335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

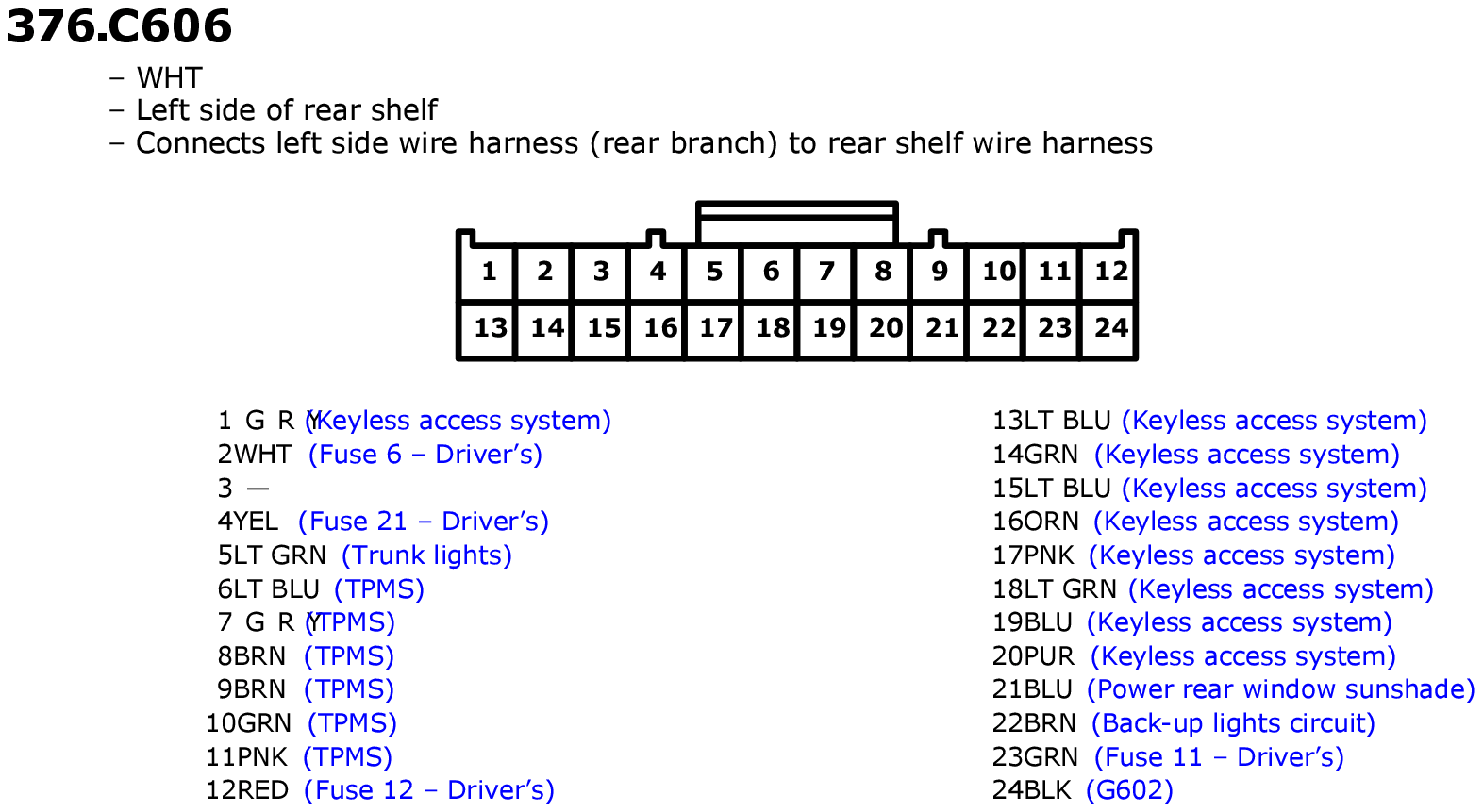

Fig 1: C606 Connector End View

GHHW9801

Courtesy of AMERICAN HONDA MOTOR CO., INC.
