M/T model

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

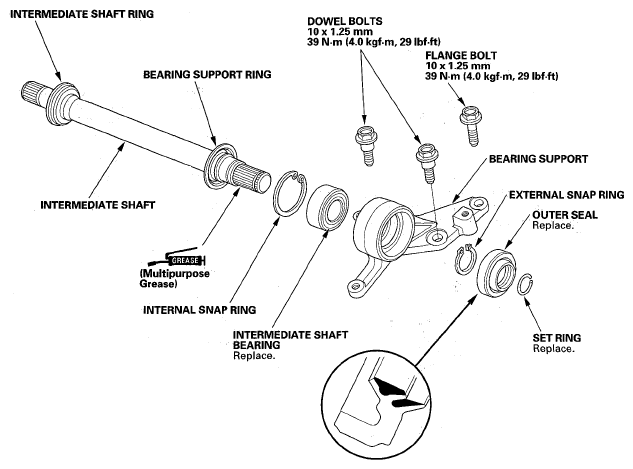

Fig 1: Exploded View Of Intermediate Shaft Components - M/T Model With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Oil seal driver 07GAD-PH70201
Oil seal driver attachment 07JAD-PH80101
Support base attachment 07LAF-SM40300
Attachment, 52 x 55 mm 07746-0010400
Attachment, 35 mm I.D. 07746-0030400
Driver 07749-0010000
Fork seal driver, 39.2 x 49.5 x 15 mm 07947-4630100
Support base 07965-SD90100

NOTE: Refer to the Exploded View, as needed, during this procedure.

Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber parts with solvent.
Press the intermediate shaft bearing (A) into the bearing support (B) using the attachment, 52 x 55 mm (C), driver (D), and a press.

Fig 2: Pressing Intermediate Shaft Bearing Into Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Seat the internal snap ring into the groove of the bearing support.

Fig 3: Identifying Internal Snap Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press the intermediate shaft (A) into the new shaft bearing (B) using the attachment, 35 mm I.D. (C) and a press.

Fig 4: Pressing Intermediate Shaft Into Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Seat the external snap ring (A) into the groove of the intermediate shaft (B).

Fig 5: Identifying External Snap Ring Into Groove Of Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

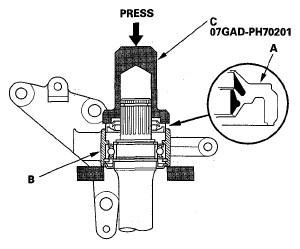

Install a new outer seal (A) into the bearing support (B) using the oil seal driver (C) and a press.
