A/T model

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

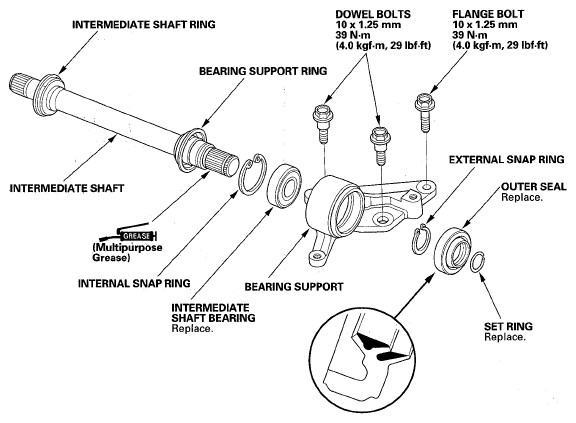

Fig 1: Exploded View Of Intermediate Shaft Components - A/T Model With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the Exploded View, as needed, during this procedure.

Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber parts with solvent.
Press the intermediate shaft bearing (A) into the bearing support (B) using the driver (C), oil seal driver attachment (D) and a press.

Fig 2: Pressing Intermediate Shaft Bearing Into Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Seat the internal snap ring into the groove of the bearing support.

Fig 3: Identifying Internal Snap Ring Into Groove Of Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.

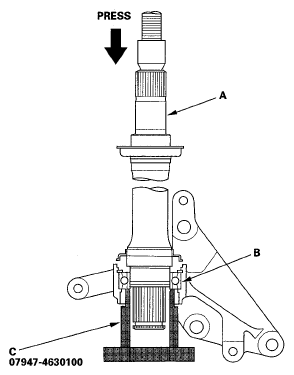

Press the intermediate shaft (A) into the new shaft bearing (B) using the fork seal driver, 39.2 x 49.5 x 15 mm (C) and a press.

Fig 4: Pressing Intermediate Shaft Into Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Seat the external snap ring (A) in the groove of the intermediate shaft (B).

Fig 5: Identifying External Snap Ring In Groove Of Intermediate Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

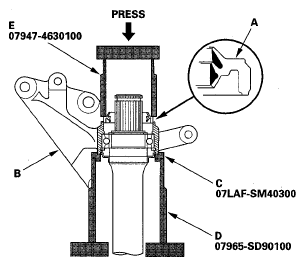

install a new outer seal (A) into the bearing support (B) using the support base attachment (C), support base (D), fork seal driver, 39.2 x 49.5 x 15 mm (E), and a press.

Fig 6: Pressing Outer Seal Into Bearing Support
Courtesy of AMERICAN HONDA MOTOR CO., INC.
