Exploded View

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

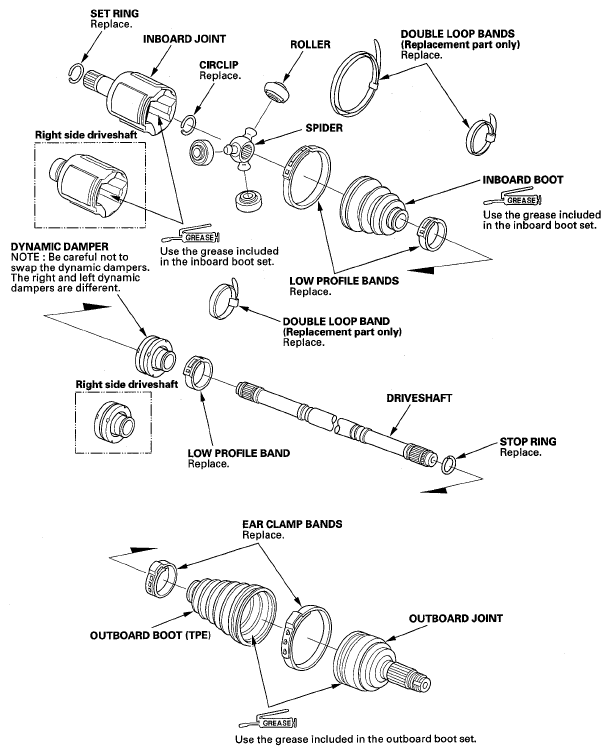

Fig 1: Exploded View Of Driveshaft Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available
Boot band pliers, Kent-Moore J-35910 or equivalent, commercially available

NOTE: Refer to the Exploded View, as needed, during this procedure.
