Circuit Diagram

WARNING: This page is about a different car, the 2006 Acura RL and 2005 Acura RL. However, it is still accessible from the selected car via links, so may be relevant.

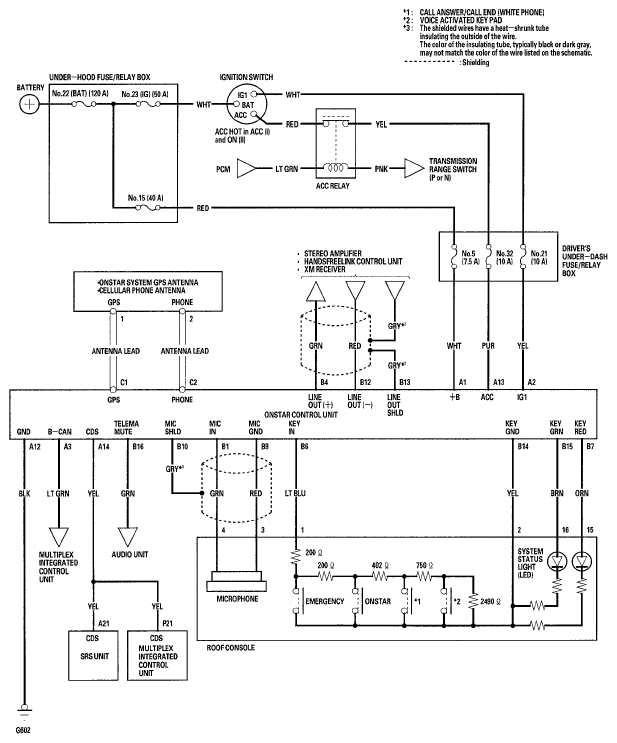

Fig 1: Onstar System - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
