Fuel Fill Door Opener Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body.
  1. Remove the front door sill trim, left side (see step 3 in TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Remove the screw and release the hooks (A), then remove the fuel fill door opener cover (B).

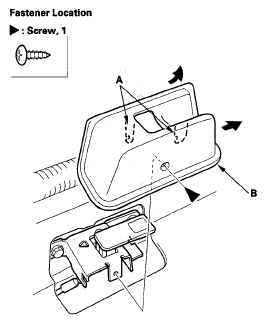

    Fig 1: Removing Fuel Fill Door Opener Cover
    G05462351Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolt.
    Fig 2: Removing Bolt With Torque Specifications
    G05462352Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Loosen the bolt (A), and remove the opener (B) from the bolt.
  5. Disconnect the fuel fill door opener cable (A), then remove the opener (B). Take care not to kink the cable.
    Fig 3: Disconnecting Fuel Fill Door Opener Cable
    G05462353Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the opener in the reverse order of removal, and note these items:
    • Make sure the opener cable is connected properly.
    • Make sure the fuel fill door opens properly and latches securely.
