Component Location Index

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

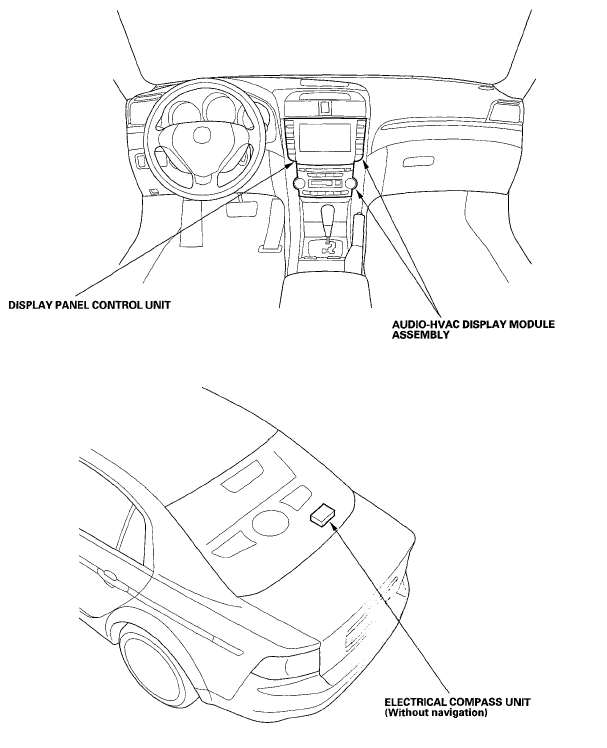

Fig 1: Display Panel Control System Component Location Index
G05463246Courtesy of AMERICAN HONDA MOTOR CO., INC.
