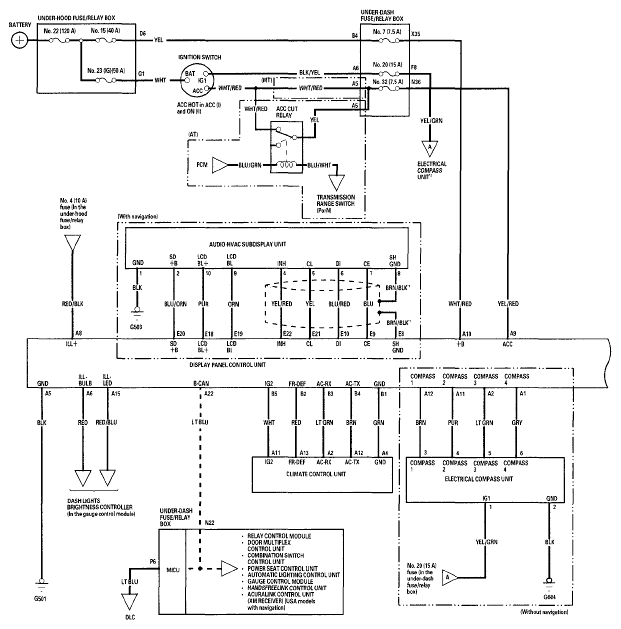

Fig 1: Display Panel Control System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

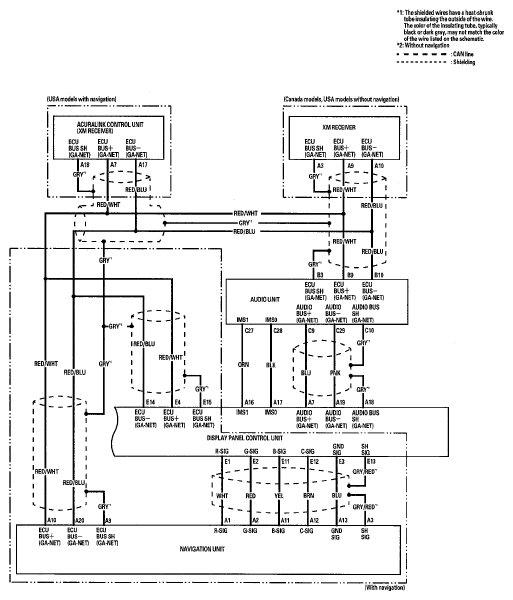

Fig 2: Display Panel Control System Circuit Diagram (2 Of 2)
