Trunk Pass-through Cover Key Cylinder Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
Take care not to scratch the cover.

Using a trim tool, pry the rear seat handle (A) up at both hook portions (B) on the forward side of the trunk pass through cover (C). Then slide the handle half-way up.

Fig 1: Prying Rear Seat Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
From the trunk compartment side of the cover, using a small screwdriver, press the inside hook (A) down through the access hole (B).

Fig 2: Pressing Inside Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While pressing the hook, pry the trunk-side handle (C) up with a trim tool.
Remove the trunk-side handle (A) and rear seat handle (B) at the same time.

Fig 3: Removing Trunk-Side Handle And Rear Seat Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

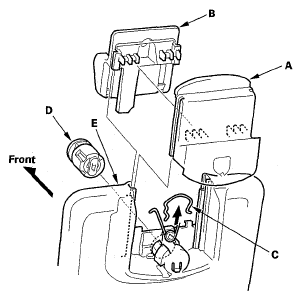

Remove the retainer clip (C), then remove the trunk pass-through cover key cylinder (D) from the cover (E).
Install the key cylinder in the reverse order of removal, and note these items:
- Put the two handles together before installing them on the trunk pass-through lid.
- Make sure the trunk pass-through lid opens properly and locks securely.
